Logo fenetre alu et porte Satin Moon Factory Spirit Satin Moon aluminium foldable door

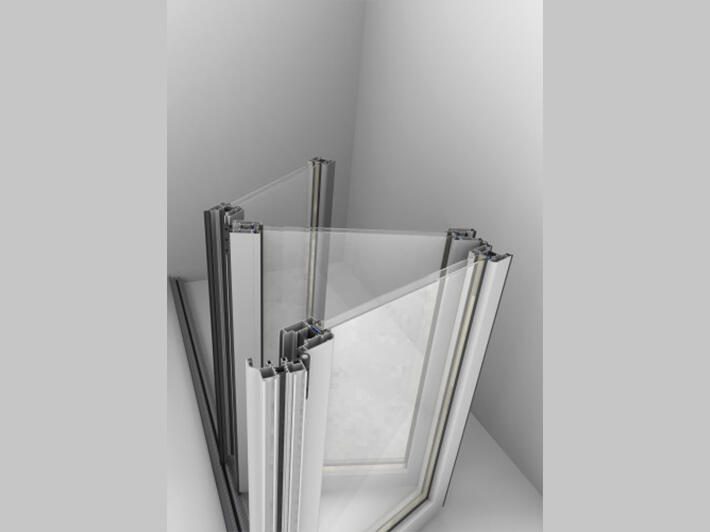

Joinery system for constructing self-supporting folding doors with thermal break, opening inwards or outwards.

Porte aluminium repliable Satin Moon

Aluminium foldable door with thermal break

Highlights

  • Reduced sill for disabled access
  • Corner assembly possible
  • Available in all Profils Syste?mes’ exclusive colours
  • Colour shades guaranteed up to 25 years



Design

  • Factory Spirit® Straight cut

View our photo book

View online

Dimensions

  • Max dimensions: 1 leaf WxH 1000 x 2500 mm
  • Min width per leaf: 700mm
  • Max weight per leaf : 100 kg

Range

  • Up to 8 leaves
  • Inward or outward opening

Weather tightness

  • AEV Test results : A*4 – E*1050 – V*C 4 - 3 leaf door with fixed frame surround (dimensions WxH 2700x2114mm)
  • Waterproof rating greater than 9

Dimensions

  • Max dimensions: 1 leaf WxH 1000 x 2500 mm
  • Min width per leaf: 700mm
  • Max weight per leaf : 100 kg

Range

  • Up to 8 leaves
  • Inward or outward opening

Weather tightness

  • AEV Test results : A*4 – E*1050 – V*C 4 - 3 leaf door with fixed frame surround (dimensions WxH 2700x2114mm)
  • Waterproof rating greater than 9

Technical details

Fixed frame

  • Hollow-section 80mm thickness, with clip-on architraves and offset shutter pieces possible for wall infill thickness compensation
  • Wall infill thickness 100 to 200 mm

Leaf

  • Hollow-section, thickness 74.5 mm

Glazing

  • Double or triple glazing or insulating door panel 26 to 32mm
  • Rebate depth 22.2mm on fixed frame, 26mm on leaf. Seal compliant with French building regulation DTU 39

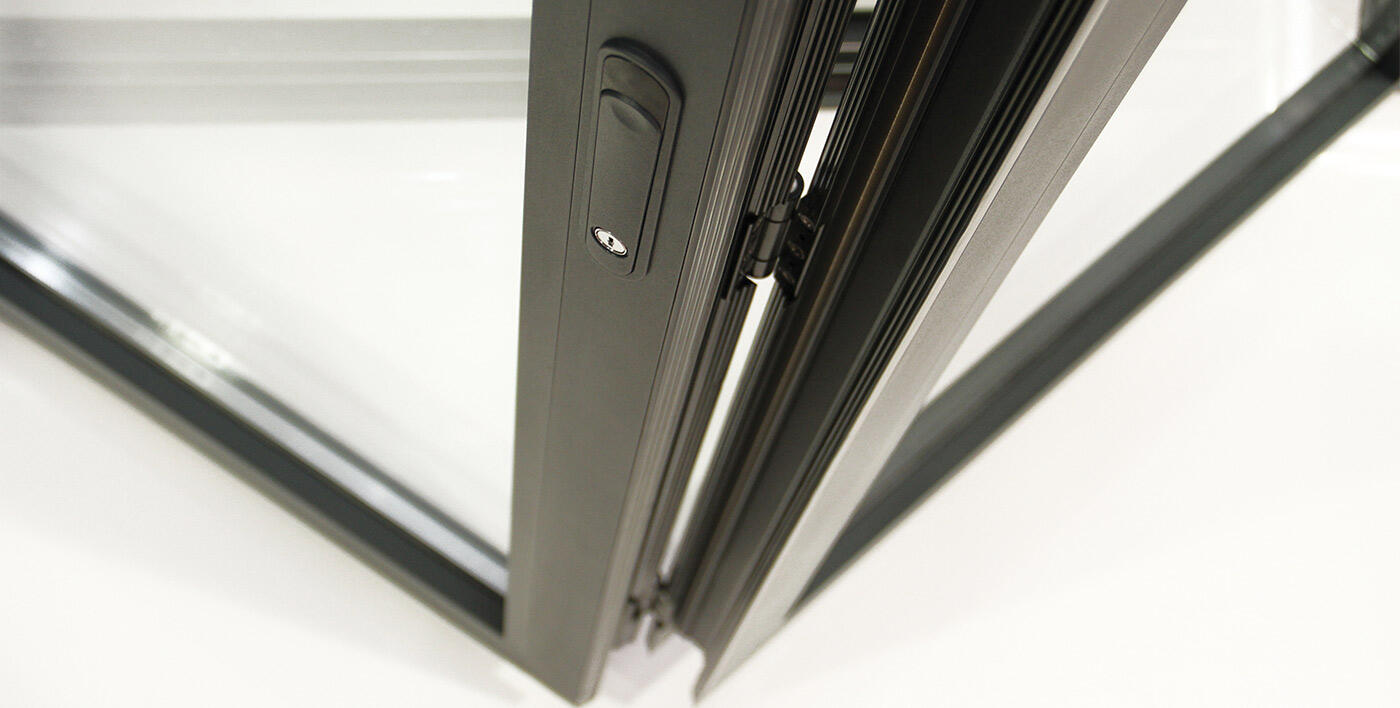

Locking

  • Batten: 3-point bolt with lock and key
  • Foldable section: top and bottom locking point

Download

Commercial Documentations

094_251_sheet_satin_moon_foladable_door (PDF - 1.09 MB)
