Logo Coulissant aluminium Cuzco Cuzco® new look aluminium sliding pocket door for sunrooms

Cuzco® 712 series is the very latest generation of new look, automated aluminium sliding pocket door developed by Profils Systèmes.

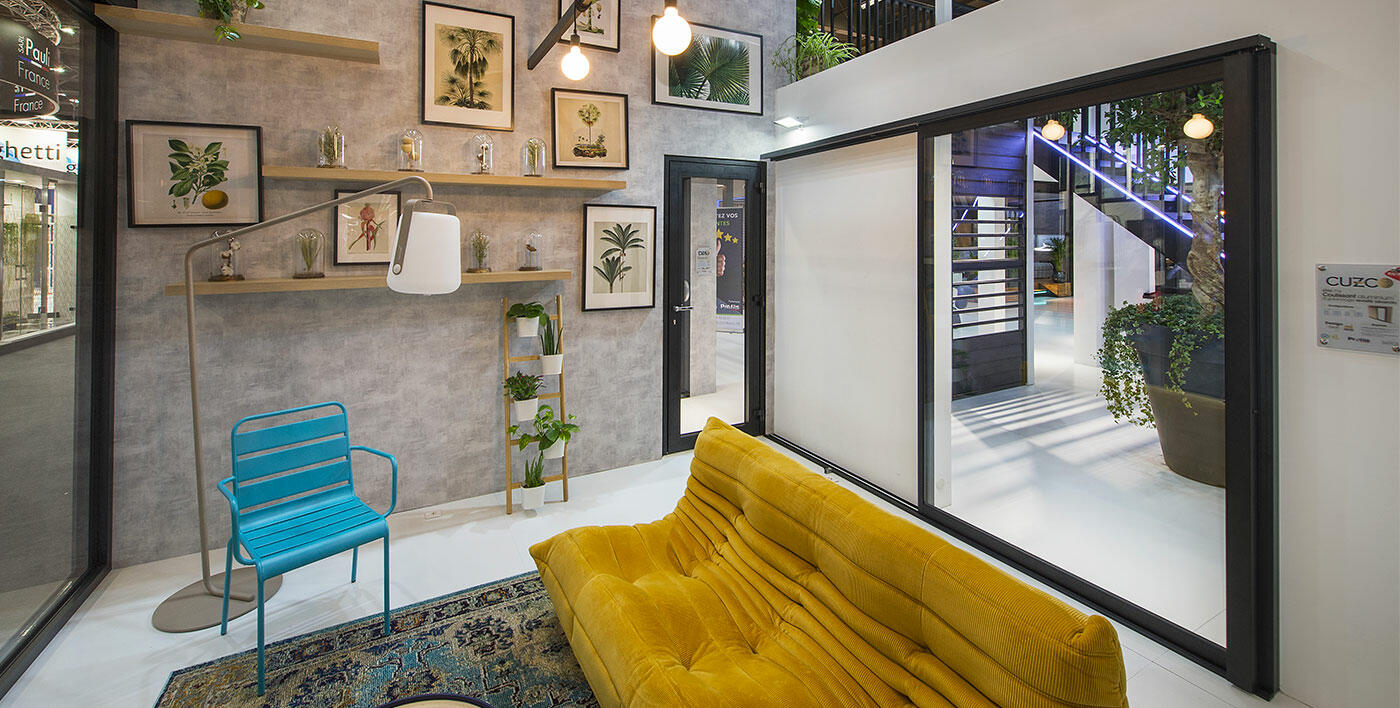

Designed to act as an attractive separation between indoors and the sunroom, the Cuzco® new look aluminium sliding pocket door is also an efficient barrier against temperature change in case of very hot or very cold weather.

An economical solution, the Cuzco® 712 new look aluminium sliding pocket door optimises manufacturing costs due to the absence of side jambs in the 2 and 4 leaves versions.

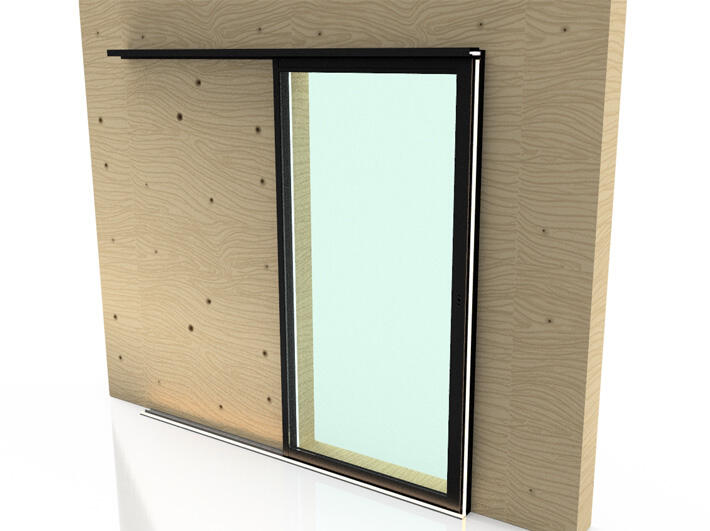

3D coulissant à galandage revisité Cuzco pour véranda

Sliding pocket door for sunrooms

Highligths

  • Economical solution
  • For indoor use only, to separate the house from the sunroom
  • Optional automation and LED strip lighting
  • Glazing up to 28 mm
  • Extra large sizes: up to 3m high
  • Maximum weight / leaf: 250 kg
  • Disabled access sill
  • Available in all Profils Systèmes exclusive colours
  • Colour hold guaranteed up to 25 years

Design

  • Factory Spirit® Design

View our photo book

View online

Configurations

  • Pocket with automation: 1 leaf, 1 rail
  • Pocket : 1 leaf, 1 rail & 2 and 4 leaves, 2 rails

Range

  • Extra high frame: up to 3m
  • Optional Automation of 1 leaf sliding door
  • Optional LED strip lighting on jambs and transoms

Dimensions maxi

  • 2 leaves sliding door  : H3000mm x W3000mm
  • Per leaf : H3000mm x W1500mm

Configurations

  • Pocket with automation: 1 leaf, 1 rail
  • Pocket : 1 leaf, 1 rail & 2 and 4 leaves, 2 rails

Range

  • Extra high frame: up to 3m
  • Optional Automation of 1 leaf sliding door
  • Optional LED strip lighting on jambs and transoms

Dimensions maxi

  • 2 leaves sliding door  : H3000mm x W3000mm
  • Per leaf : H3000mm x W1500mm

Technical details

Fixed frame

  • 52mm module, 1 rail
  • 110mm module, 2 rails

Opening frame

  • Opening frame with 28mm to 32mm polyamide strips

Glazing

  • Double glazing available
  • Glazing thickness: 28mm
  • Maximum weight : 250kg / leaf

Assembly

  • Fixed frame 45° or 90° cut with pin corner cleats
  • Opening frame 45° cut with stainless steel screws in screw recesses

Weather Tightness

  • By brush seal or TPE seal between the various profiles
  • By co-extruded seal between joins

Locking

  • 1 to 5 point locking systems, keyed or unkeyed

Wheels

  • Single or double 22 mm wheels, adjustable or not

Accessibility

  • Disabled access sill
