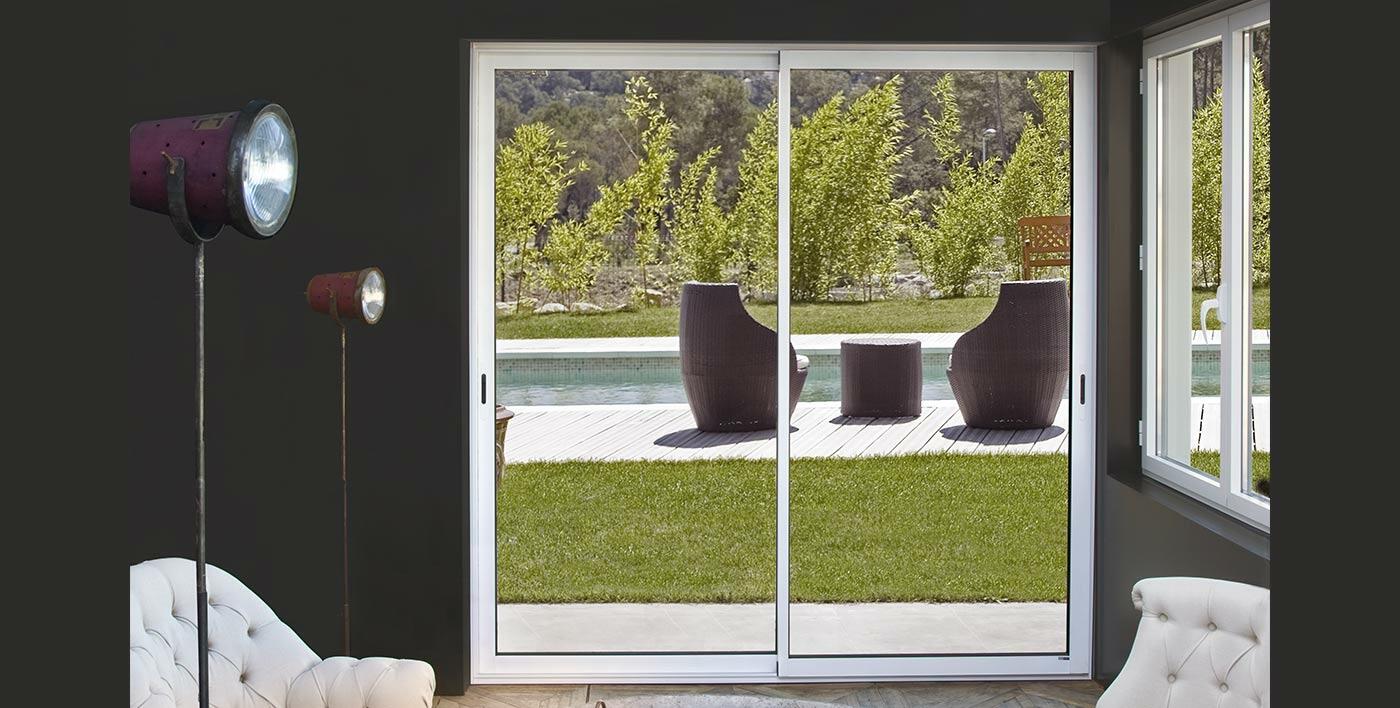

Touareg TH sliding doors
Range of aluminium sections for sliding frame doors and windows. TOUAREG® TH, compliant with French regulations RE 2020, is designed for the manufacture of traditional straight-cut sliding windows up to 8 leaves, 4 rails and in pocket frame, 4 leaves 2 rails.
Thermal Break slidind windows
Highlights
- Compliant with French regulations RE 2020
- Qualifies for tax credit
- Optional thermal shield
- Batimat event: medal for the Factory Spirit® design
- 1, 2, or 3-point lock according to height of glide frame
- Roller shutter adaptation possible
- Dual-colour possible thanks to thermal bridge breaker bars
- Available in all Profils Systèmes’ exclusive colours
- Colour shades guaranteed up to 25 years
Thermal Performances
- Uw = 1.4 Wm2K / Sw=0.44 double-glazed glide frame 2-leaf (WxH 2350 x 2180 mm)
Accoustic Performances
Noise attenuation index up to 31 dB

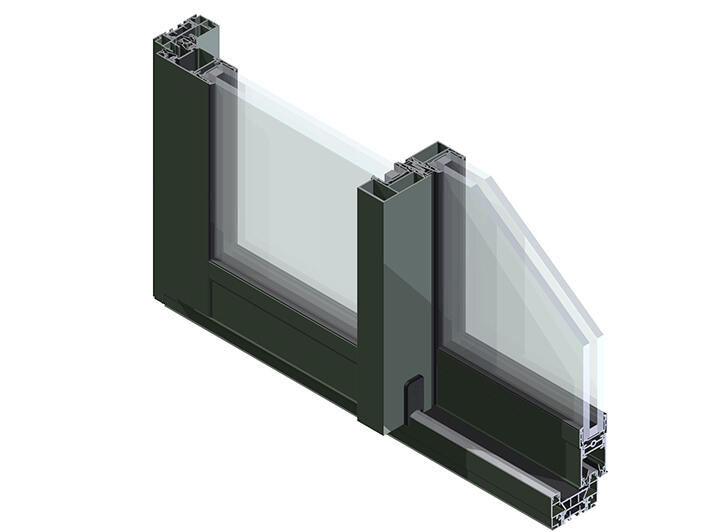

Technical details

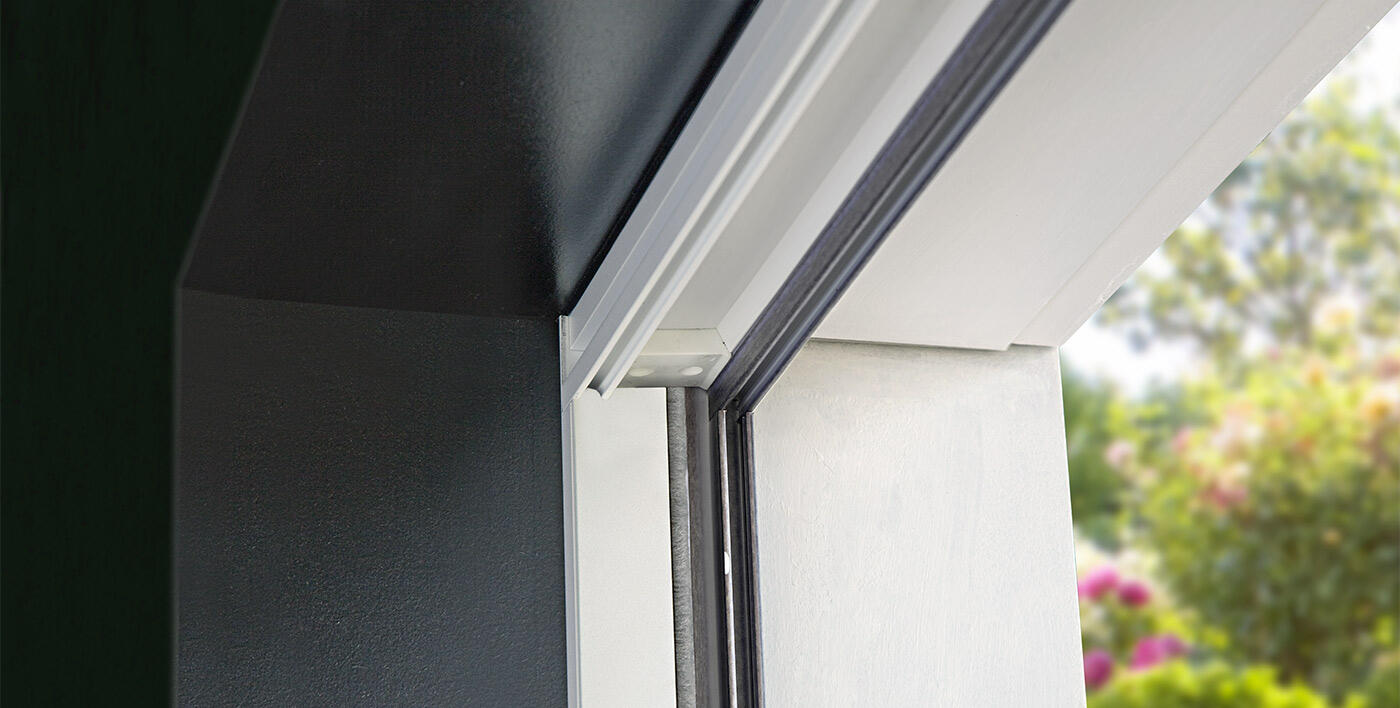

Fixed frame
- Hollow-section single piece fixed frame with built in external shutter pieces and architraves for 100 200mm wall infill thicknesses
- Straight cut assembly
- Thermal break by polyamide strip
Glide frame
- Hollow-section side and centre members, available in simple or reinforced version depending on the dimension and exposure of the fixture
- The transoms are designed for straight-cut assembly with screws
- Thermal break by polyamide strip
Glazing
- Glazing thickness 24 or 28mm, glazing bead assembly with U-seal, rebate depth 18mm, seal compliant with french building regulation DTU 39

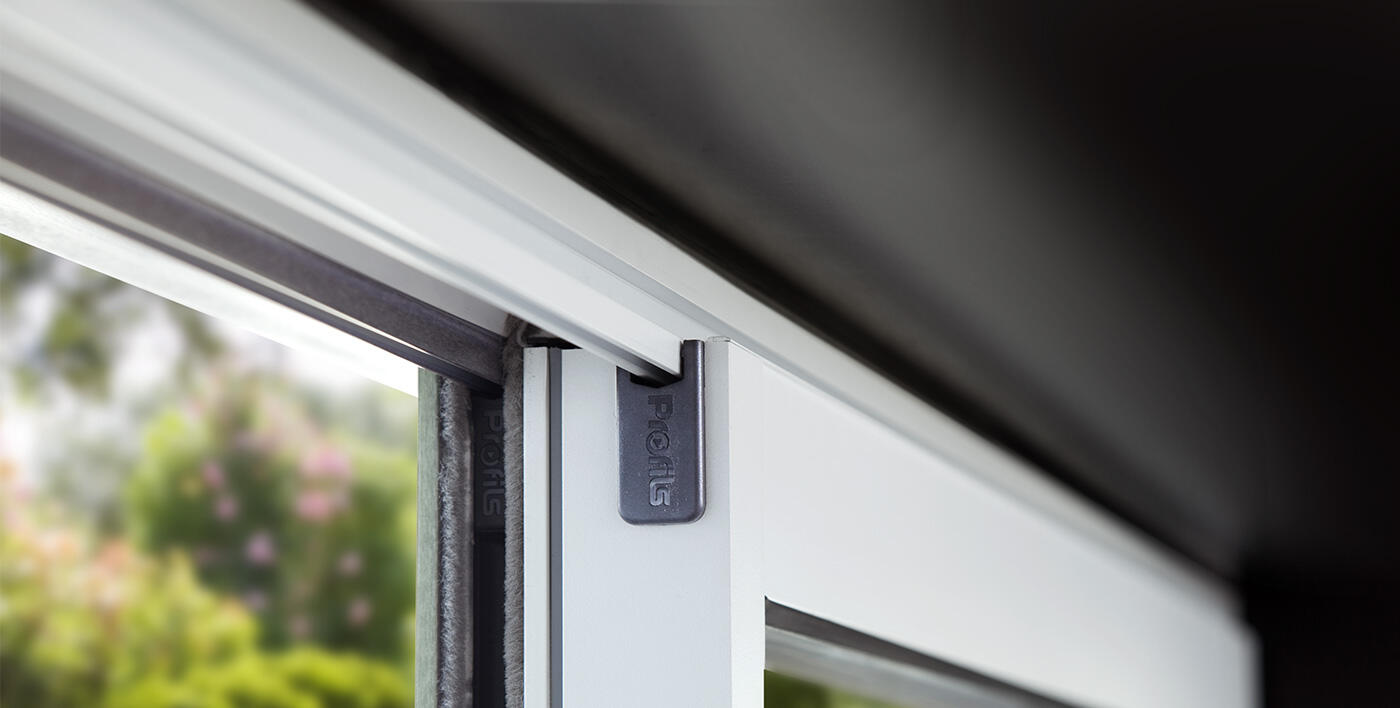

Locking
- 1 to 3 locking points engaged by recessed latch or standard handle
