Logo façade aluminium Passage® UUS Passage aluminum facade

This facade has been thought for high rise buildings called “tall buildings”. It’s one of our very latest innovation.
It’s possible to realize VEP and VEC aspects. But it’s possible allows also to create concave or convex facades with angle from 150° to 190°. (According to CWCT standards).

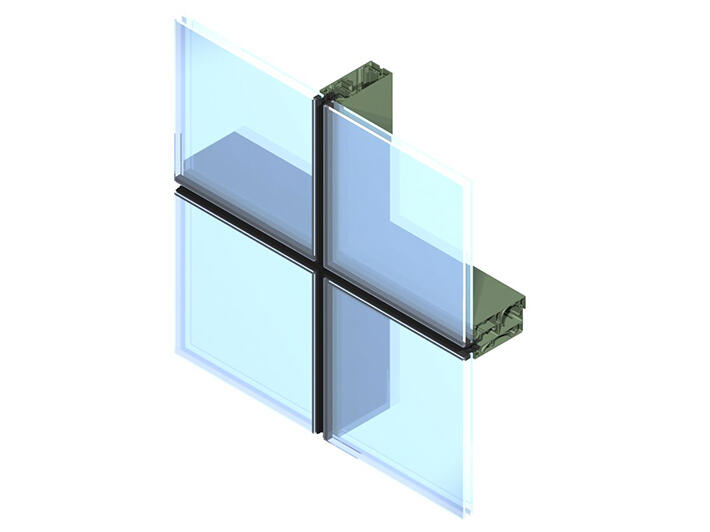

Aluminum Facade Passage®

Simplicity and Performance

Highlights

  • Creation of concaves ou convex facades.
  • Angle from 150° to 190°.
  • Accept building movement: +/- 6 mm horizontally,  +/- 19 mm vertically.
  • Straight cut assembly to optimize profiles sections, to get large glazed surfaces and to optimize costings.
  • Efficient Sealing.

Thermal Performances

  • Complies with CWCT standards

Wind test :

- Wind test under 3600 Pa wind pressure

- Safe at a pressure of 5400 Pa

- Building’s ground movement test without break of performance

  • AIr and water thightness ensured by a 5 joints seal :

- 600 Pa air thightness

- 600Pa standing or running water thightness (possibility to reach 1200 Pa with additional seal)

View our photo book

View online

Looks

Constant width of visible faces on polygonal elements (angle facades) :

  • VEC
  • VEP



Looks

Constant width of visible faces on polygonal elements (angle facades) :

  • VEC
  • VEP



Technical details

Structure

  • Basic interior unit : 70 mm
  • Customisable unit : from 63.5 to 100 mm
  • Variable joint between customizable glazing from 20 to 40 mm or more (depending on the project)

Filling

  • From 6 to 42 mm thickness
  • Possibility of sun screens integration between 2 glass panels
