Logo façade aluminium Tanagra® Tanagra aluminum curtain wall

The Tanagra® curtain wall series allow to realize many kinds of façade with an unique structure: grid aspect, horizontal capping, VEC, VEP, skylight and sunshades.

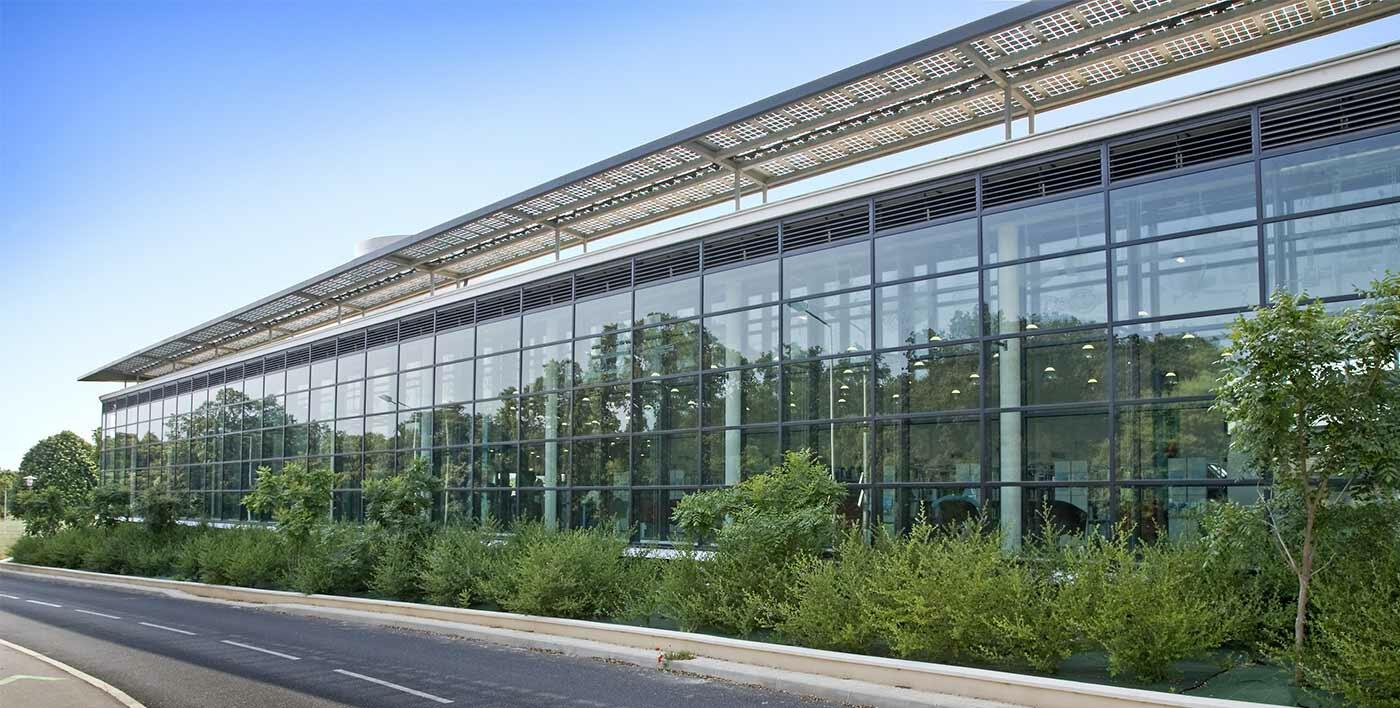

Tanagra® is also available in a solar version. Horizontal capping, grid aspect and skylight can integrate solar panels.
Tanagra® gives new possibilies to curtain walls, it’s a perfectly adapted product to European and international markets.

Tanagra® Aluminum Facade

Architecture and Performance

Hightlights

  • Unique structure regardless of the curtain wall appearance desired, the basic structure remains the same
  • Many possible aesthetic solutions
  • Thermal and acoustic insulation
  • Possibility of steal reinforcements
  • Quicker to manufacture and to install
  • Available in the entire Profils Systemes’exclusive colors
  • Bi coloration possible
  • Colour shades guaranteed up to 25 years

Thermal Performances

  • Report n° CLC 07-26006453
    • A*4 - R*7 - E*5 I*5
    • Air pressure:1200 Pa
  • Report n° CLC 06 -26003166
    • A*E - R*6 - E*5 I*5
    • Air pressure 1200 Pa

View our photo book

View online

Accreditation

  • VEC Tanagra : European Technical Assessment 09/0229 of 27/04/2015

Looks

  • Grid aspect
  • Horizontal capping
  • VEC
  • VEP

Design

  • Straight
  • Curved design by Factory Spirit

Accreditation

  • VEC Tanagra : European Technical Assessment 09/0229 of 27/04/2015

Looks

  • Grid aspect
  • Horizontal capping
  • VEC
  • VEP

Design

  • Straight
  • Curved design by Factory Spirit

Technical details

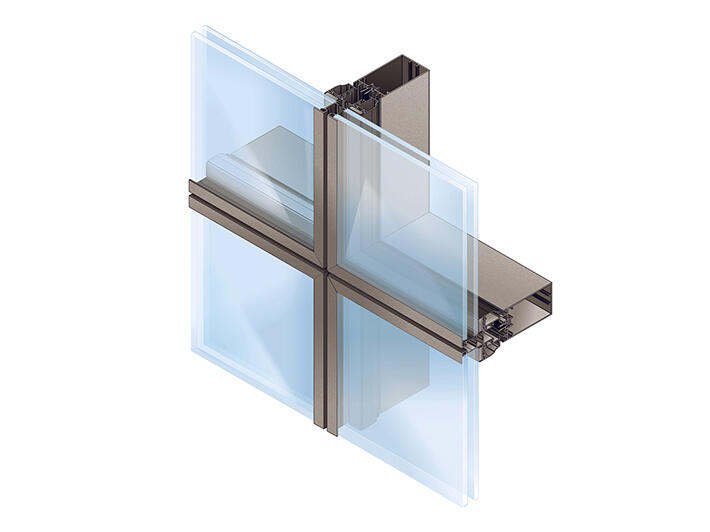

Structure

  • Tubular, 56mm wide, with sections varying from 30 to 240mm according to the inertia required
  • A single profile can be used for both mullions and transoms
  • The mullion/transom junction is made by means of a fitting batten in frontal fitting and requires no machining
  • Mullions from different sections can be reinforced with standard steel or aluminium plating or tubes (inertia from 5.88 cm4 to
  • 4 148 cm4)

Vents

  • It's possible to integrate all kind of mullions on the Toundra range: French casement, top hung ...

Insulation

  • Grid, Horizontal Transom, Factory Spirit® Beaded aspect

Insulating spacer 40 or 50mm thick

  • VEC

Via thermal bridge break profiles Frames attached by interlocking

Filling

  • Grid, Horizontal transom, Factory Spirit® Beaded aspect, Glass canopy

Glazing from 6 to 46mm

Architectural façades with angles varying between +/- 10° can be created

  • VEC

Glazing in 24,31 and 39mm on fixed frames

Hollow joint between the 2 panes: 22 or 27mm

Tests ETA-09/0229
