Logo garde-corps et barrière de piscine alu Macassar Macassar aluminum balustrade

Macassar is a range of aluminum profiles designed for the fabrication of or railings, allowing to design any shape: straights, ramps or arches, with bars, filled glazing or Altuglass, ship style.
Assembly, adjustment and installation are easy for: fixtures on slab front, on slab, on low wall, in stairways.
Studied for both railings and pool barriers, the design of the Macassar fixtures are curved, non-aggressive, and are reminiscent of the emblem of St Jacques de Compostelle.
The fixture piece is one of the main piece for the studiness of the balustrade.
Screws are hidden by an aluminum lacquered cap.
Profils can be coated in the entire Profils Systemes’s exclusive colors: Mahoé & Eclats Métalliques.

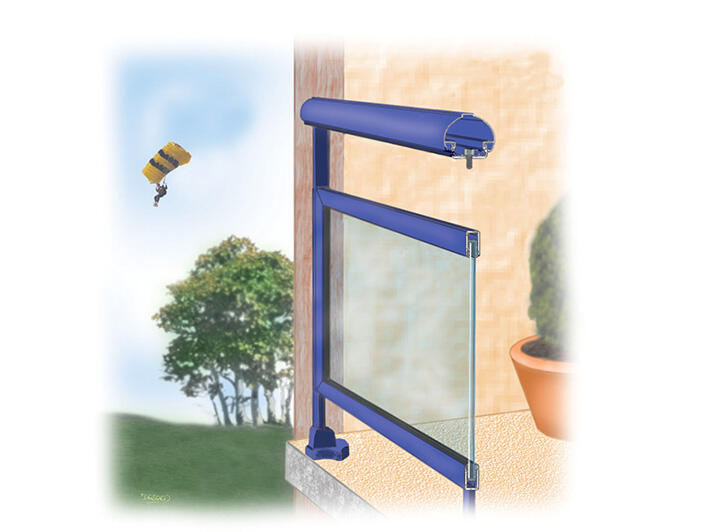

3D Macassar Balustrade

Aluminum balustrade: safety and design

Highlighs



  • Elegant profiles and moulded sections
  • Many configurations
  • Complies with current standards
  • Easy to fit
  • For residential and services sector, newbuild or renovation
  • New : minimalist FACTORY SPIRIT® design
  • Large number of finishes available
  • Materials can be mixed: glass, sheet metal...
  • Swimming pool guard rail version available to standard specs • 6 models of base-plates
  • LED Strip can be built in
  • Corner version available
  • Available in all Profils Systèmes’ exclusive colours
  • Colour shades guaranteed up to 25 years
  • VOC emissions : Rated A+

Design

  • Curved ou straight cut design by Factory Spirit

View our photo book

View online

Options

LED strips can be fitted to the handrail, In the Factory Spirit' version

Infill

  • Solid
  • Glazed
  • With elegant curved or straight-cut Factory Spirit® bars
  • Perforated metal sheeting only within framing
  • Up to 9 mm thickness. Infills can be fitted in front of, behind or between posts.

Performances

The MACASSAR® range complies with the standards : NF P 01-012 and NF P 01-013. Tested by CEBTP (in compliance with NF P 01-013) :

N° B 222.0.042-1 / N° B 222.0.042-2 / N° B 222.0.042-3

Options

LED strips can be fitted to the handrail, In the Factory Spirit' version

Infill

  • Solid
  • Glazed
  • With elegant curved or straight-cut Factory Spirit® bars
  • Perforated metal sheeting only within framing
  • Up to 9 mm thickness. Infills can be fitted in front of, behind or between posts.

Performances

The MACASSAR® range complies with the standards : NF P 01-012 and NF P 01-013. Tested by CEBTP (in compliance with NF P 01-013) :

N° B 222.0.042-1 / N° B 222.0.042-2 / N° B 222.0.042-3

Technical details

Maximal dimensions

  • 1500 mm for private places
  • 1000 mm for public places

Posts

  • Dimensions 40 x 20 mm
  • Regular or hung over

Hand Rails

7 models of hand rails

  • 5 curved models
  • 2 Factory Spirit® models

Fitting

  • On slab noising
  • On slab
  • On walling
  • On stairway

Base-Plates

Designed for use with railings and swimming pool guard rails, the MACASSAR® base-plate is available in curved or Factory Spirit® version. The fastenings are hidden by a matching lacquered aluminium cover.

Bars

4 models of bars :

  • Curved (17,5 x 25 mm)
  • Oval (20 x 30 mm)
  • Rectangular Factory Spirit® (17,5 x 25 mm)
  • Rectangular Factory Spirit® (40 x 20 mm)

Accessories and fastenings

Most visible accessories exist or can be created in the railing colors. Connectors are of either stainless steel or aluminum. All fastenings are of stainless steel.

Download

Commercial Documentations

094_267_Sheet_Macassar_railings (PDF - 3.78 MB)
