Wallis& aluminum sunroom roofing

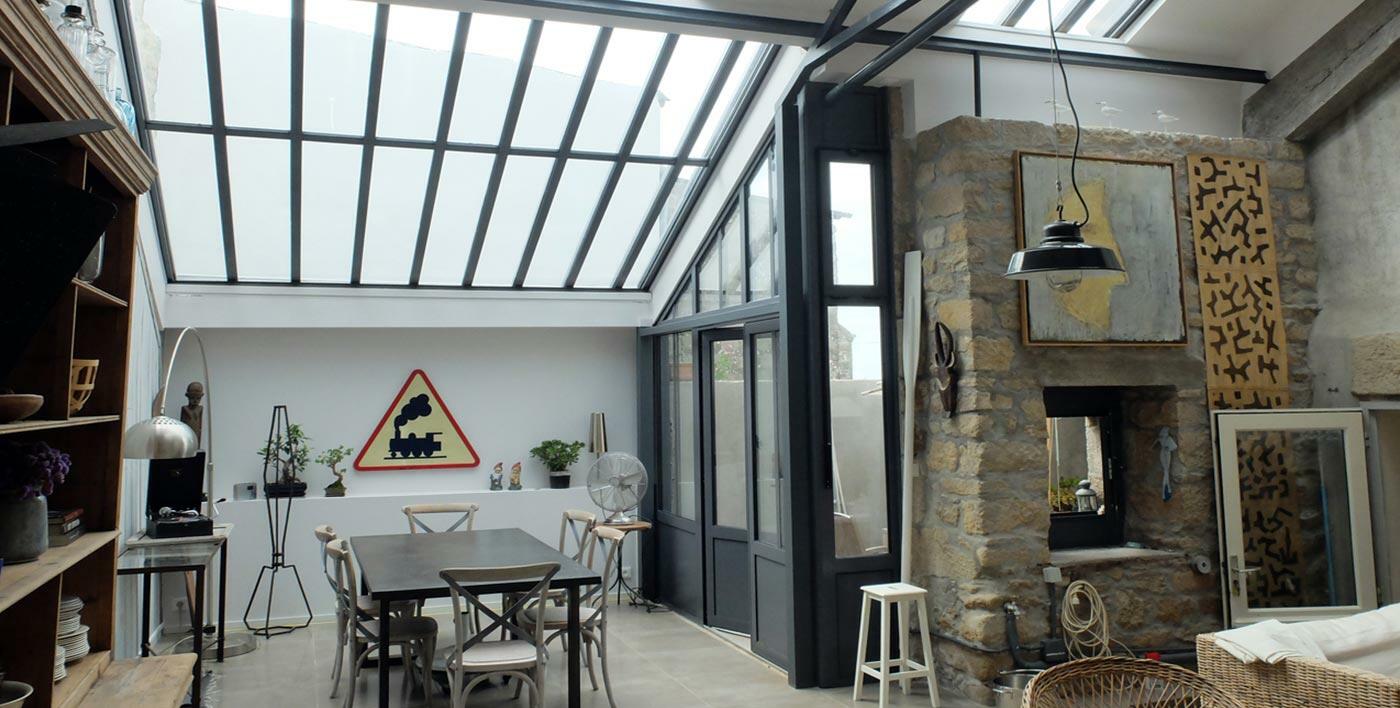

The Wallis& profiles range is made for the realization of all kinds of winter gardens, even with photovoltaic panels integration.
Simple or complex architecture, with valley, ridge, roof opening, rolling shutters, ventilator… thermal insulation roofings allows an excellent insulation, especially if they are blended to thermal bridge break windows and sliding bays : Satin Road®, Satin Moon®, Pazco®, Touareg TH®…
Design and Light
Highlights
- Complete range: ridge, integrated rolling shutters …
- Classical design and Factory Spirit Design (Design Trophy – Batimat 2009)
- Patented gutter which allows the rolling shutters installation later
- Wide choice for mullions
- Specific mullions for glass wall and radiant winter gardens
- Adjustable to different possible fillings
- Climatic management
- Available in the entire Profils Systemes's exclusive colors
- Colour shades guaranteed up to 25 years
Technical details

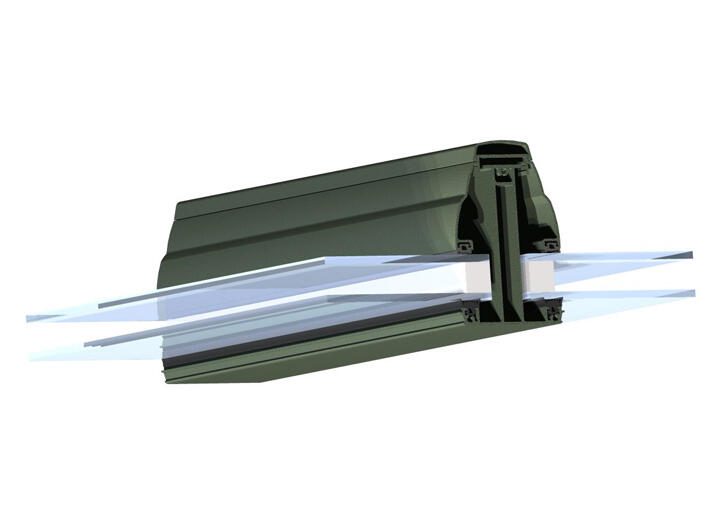

Mullions
A large choice of mullions satisfy demands. It’s possible to use 24 to 85 mm thickness filling with 4 different aesthetics:
- Traditional spotlight: exterior reinforcement - filling is maintained with beadings or outside gaskets. Thermal Bridge Break by polyamide strip.
- French or tubular spotlight: interior reinforcement – filling maintained by a clipped cap
- Tubular cap spotlight: reinforcement in intermediary position. Filling maintained by a screw downed cap
- INP Factory Spirit spotlight: a PS exclusivity. Can create an industrial atmosphere or a workshop atmosphere
Deported gutter system
Profils Systemes has developed specifical profiles for gutter with rolling shutter integration. Theese profiles are adapted to rafter of the Wallis& range.
2 kinds of trunks and posts:
- A new deported gutter system
- A traditional system where the rolling shutter is installed during the winter garden installation
Span
- Rafters should be chosen according to span, centre-to-centre distance, type of glazing infill, region or altitude. In some cases the rafter may be reinforced by an electro-galvanized plate.
- Up to 7 m of glazed roof
Infill
- The system can accept from single to triple glazing, alveolar plates, or insulating panels up to 24 to 85 mm
- Mixed glazing infill possible (different thicknesses)
Lighting
- Spotlights or Led strips can be directly incorporated under the profiles.
- The spotlights are installed in an aluminium casing. Room for connecting wires is provided at the end of the casing.
Californian blind support
- Californian blinds can be installed directly into the profiles.
- The blinds are installed directly into an aluminium casing.
Innovation: Deported gutter system - Patented System
Trendsetters in innovation, Profils Systemes installed a new patented system for deported gutter chéneau déporté. It allows the rolling shutter's installation later (optional).
Accessories and fastenings
- All aluminum accessories can be supplied according to the profiles' color.
- Fastenings are in stainless steel.
