Fenêtre alu et Porte Pazco Pazco aluminum thermal insulation windows

Pazco is a range of aluminum profiles made for hinged windows with concealed sashes.
The thermal bridge break is created by 30 mm polyamid strips and PVC fillings on the vent.
It’s possible to obtain 100 to 180 mm insulation with/without rolling shutters.

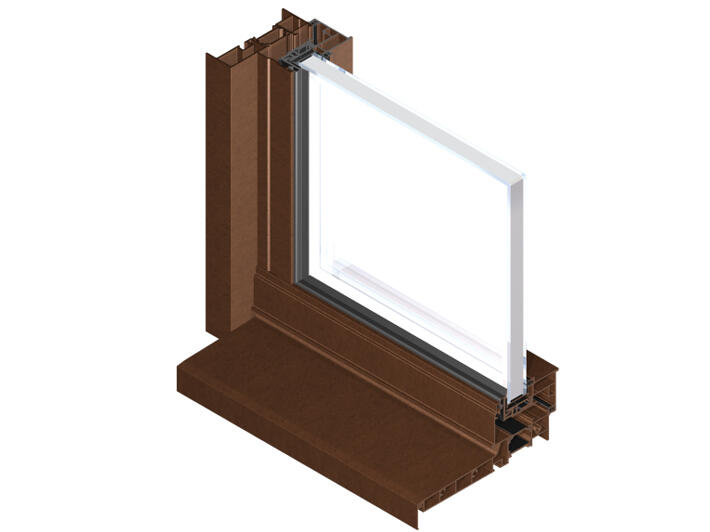

3D Pazco® Aluminum Window

Design and safety

Highlighs

  • Thermal performances up to the RT 2012 demand
  • Fixed frame from 100 to 180 mm for insulation
  • Special renovation frame
  • Optional 63.6 mm reduced sash, view from outside
  • Reduced sill
  • Optional key lock handle
  • Various sashes according to the required thermal insulation and the accessories in the system
  • Available in all Profils Systèmes' exclusive colours
  • Color shades guaranteed up to 25 years

Thermal Performance

  • Uw = 1.2 Wm2K / Sw=0.46 / triple glazed frame / W1480 x H1530 mm
  • Uw = 1.5 Wm2K / Sw=0.41 / double glazed frame / W1480 x H1530 mm

Acoustic performance

  • Noise reduction index of up to 38 dB

View our photo book

View online

Accreditation

  • CSTB - DTA number 06/12-2106

Design

  • Curved shape design
  • Factory Spirit® straight cut design

Weather tightness

  • French window single leaf AEV (air-water-wind) test results : A*3 – E*E750A – V*A3
  • French window 2-leaf AEV (air-water-wind) test results : A*4 – E*E9A – V*A3

Accreditation

  • CSTB - DTA number 06/12-2106

Design

  • Curved shape design
  • Factory Spirit® straight cut design

Weather tightness

  • French window single leaf AEV (air-water-wind) test results : A*3 – E*E750A – V*A3
  • French window 2-leaf AEV (air-water-wind) test results : A*4 – E*E9A – V*A3

Technical details

Product Concept

  • Thermal bridge break hinged windows.
  • Groove with glazing bead on the sash with aluminum or PVC groove.
  • Manufacturing time is reduced thanks to shutter pieces, pre-mounted gaskets and the optional of mounting other accessories.
  • Good thermal coefficient: Uw=1.5 / 2 leaf window / h 2180 x l 1530 mm.
  • Controlled materials cost.
  • Possibility of manufacturing large mullions while conserving significant daylight.

Fixed frame

  • Hollow section fixed frame : 55, 60 and 79 mm
  • Single-piece fixed frames for 100 mm to 180 mm insulation
  • Special renovation frame for front fitting with built-in or offset architrave

Leaf

  • Hollow-section vent, thickness 65.5mm or 74 mm
  • Vent designed for glazing bead, with pre-installed gaskets
  • Low-profile batten (63.6 mm) with centred handle possible

Assembly

Fixed frame :

  • For straight cut direct screwing into section end
  • For mitre cut pegged square brackets or crimping

Maximal dimensions

  • French casement: 1 vent 900 x 2200
  • French casement: 2 vent 1600 x 2200
  • Turn & Tilt: 1 lead 1250 x 2200
  • Turn & Tilt: 1800 x 2200
