Logo fenetre aluminium et porte aluminium Satin Moon Satin Moon casement window with enhanced thermal insulation

Satin moon is the new series of enhanced performance casement windows designed by Profils Systèmes.
Designed to comply with the new regulations on thermal insulation scheduled to come into effect in 2012, Satin Moon optimises energy saving by taking advantage of heat generated by sunlight, which also helps to reduce energy consumption in building.
The contemporary design is complemented by straight, clean sight-lines and a chic elegance that offers architects new creative design solutions.

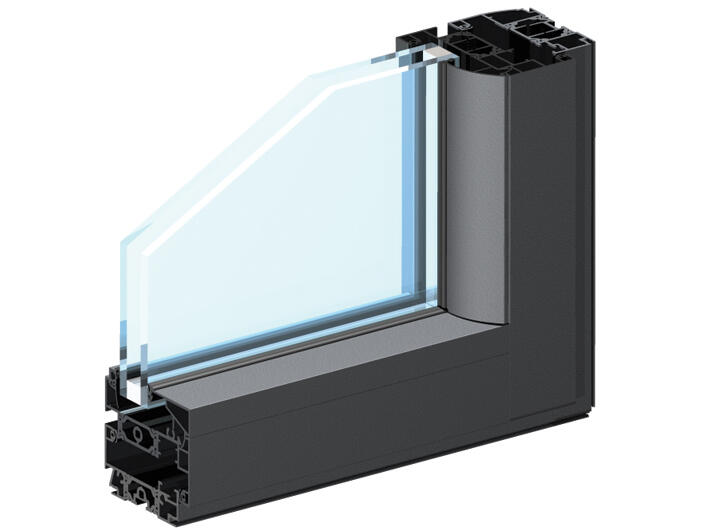

Satin Moon® Aluminum Thermal Insolation Window

Clean sight-lines

Highlights

  • High energy performance
  • Meets French regulations RE 2020
  • Glazing up to 54 mm
  • Makes the most of incoming sunlight
  • Excellent light propagation
  • Heating & lighting cost savings
  • Reduced sill for disabled access
  • Available in all Profils Systèmes’ exclusive colours
  • Dual Colour possible thanks to break by strips
  • Colours shades guaranteed up to 25 years

Thermal Performances

  • Uw=1.5 Wm²K / Sw=0.46 with double glazing / 2 leaf window / CE dimensions
  • Uw=1.1 Wm²K / Sw=0.45 with triple glazing / 2 leaf window / CE dimensions

Acoustic Performances

  • Noise reduction index R up to 41 dB (Ra,tr)

Design

  • Curved shape design
  • Factory Spirit® straight cut design

View our photo book

View online

Accreditation

  • CSTB - DTA number 06/15-2260

Models

5 models available :

  • Direct glazing (U-seal)
  • Eurogroove
  • 16mm groove
  • Casement with glazing bead
  • Single piece 200mm

Weather tightness

  • AEV (air-water-wind) test results : A*4 – E*9A – V*C3

Accreditation

  • CSTB - DTA number 06/15-2260

Models

5 models available :

  • Direct glazing (U-seal)
  • Eurogroove
  • 16mm groove
  • Casement with glazing bead
  • Single piece 200mm

Weather tightness

  • AEV (air-water-wind) test results : A*4 – E*9A – V*C3

Technical details

Product Concept

Satin Moon® is a new casement frame window system designed to produce high energy performance inward opening or tilt & turn windows leaves. In France, it entitles the owner to tax credits both for replacement and the construction of energy efficient buildings (low energy house label).

Performance gives uw = 1.1 W/m²K and Sw = 0.45 with triple glazing. This extremely good thermal performance is obtained in part thanks to an aluminium section between the frame and leaf just 77.9 mm thick and the use of insulating profiles. Using a frame with a 60 mm module, this series combines ideally with the high thermal performance Satin Road® sliding system.

Frame

  • 60 mm module with 28 mm polyamide strips

Sash

  • 73.6 mm module with polyamide strips in Eurogroove type 32mm model or 16mm groove model

Glazing

  • Available for double or triple glazing
  • With eurogroove : from 10 to 46mm for fixed frames 18 to 54mm for leaves

Sealing

  • Air and water leak-tightness achieved with a double barrier (one seal on the fixed frame and one on the leaf/casement/light).
  • The specific design of this system enables top rate thermal performance without a middle seal, more costly and more time consuming.

Closures

The leaves can be fitted with 2 types of hardware:

  • Hardware for Eurogroove
  • Hardware for 16 mm groove with  fixed or two-piece hinges
