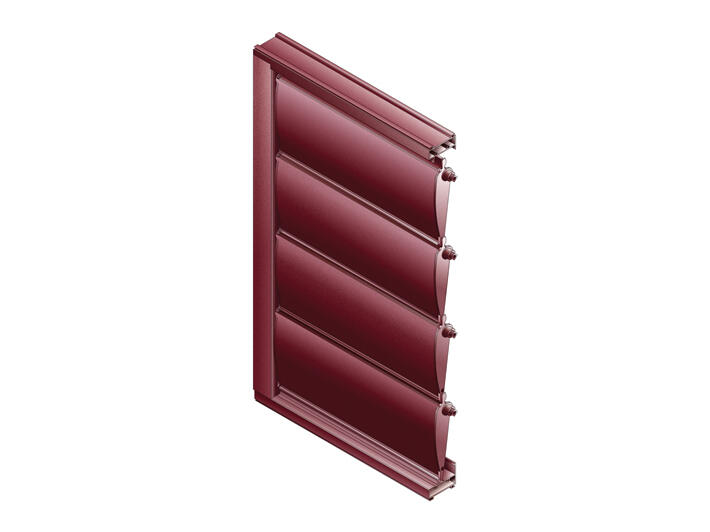

The Trinidad® aluminium louver shutter is a window feature blending good looks with ease of fitting, with absolutely no concession to quality and weatherproofing standards.

Ideal for tropical regions, the Trinidad® aluminium louvre blind guarantees good security with good ventilation and fine management of sunlight entry. Available in curved or straight Factory Spirit® design versions, it can be infilled with 6mm-thick glass, aluminium, wood or mixed slats.

Its 51mm fixed frame is perfectly compatible with the Dzao® range of traditional aluminium casements windows.

Trinidad® Aluminum Louver Window

Ventilation and safety

Highlights

  • Fixed frame width 51mm
  • Reinforced glass slat profile for large dimensions up to 1200 mm
  • Two options for mullion installation
  • Insect screen can be fitted
  • Punching tool available for drain holes, transom/mullion assembly, and louvre holes for variable pitch
  • Design handle with 5 positions, invisible screws
  • Available in all Profils Systèmes’ exclusive colours
  • Colour shades guaranteed up to 25 years



View our photo book

View online

Design

  • Factory Spirit® Straight cut design
  • Curved design

Weatherproofing

  • For dimension W 890 x H 990 mm / AEV (air, water, wind) test results : A*3 E*7A V*A4
  • For dimension W1200 x H990mm / AEV (air, water, wind): up coming test results.

Design

  • Factory Spirit® Straight cut design
  • Curved design

Weatherproofing

  • For dimension W 890 x H 990 mm / AEV (air, water, wind) test results : A*3 E*7A V*A4
  • For dimension W1200 x H990mm / AEV (air, water, wind): up coming test results.

Technical details

Product Concept

Simple stock management : There are only five sections in the shutter’s construction

  • Different top and bottom transoms (simple machining and material savings)
  • Opening by casement bolt or winding handle
  • Insect screen option for clipping to fixed frame

Innovation

1 reinforced glass slat profile for large dimensions up to 1200mm

2 types of side mullion available:

  • Standard side mullions: U-section with slide-in cap assembled onto the straight-cut transom
  • Side mullions made from two complementary half-sections, enabling :
    • Access to the mechanism without removing the louvre unit once fitted and sealed
    • Exterior weatherproofing of frames fitted at a height without the need for cranes, aerial platforms, or ladders

Closure

Two blind closing systems:

  • Casement bolt
  • Winding reel (manual or powered).

New Factory Spirit® design handle give 5 positions: closed, 23°/ 45°/ 68°/ 90°. Invisible screws.

An adjustable drive system allows perfect adjustment of the louvres when fitting.

Glazing

  • The 6mm infill can be glass, aluminium, or other louvers.
  • In heights of 120mm, 150mm, or adjustable.
