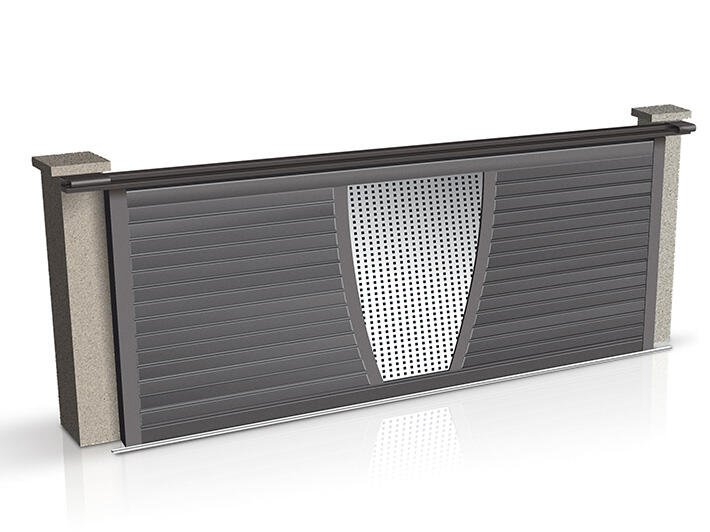

Shar-Pei aluminum contemporary gate
Aluminum range of profiles designed for the manufacture of 1 and 2 leaf sashes.
The aluminum Shar-Pei range enables you to respond to today’s trends: straight lines, inclined or curved, with a variety of filling options: full or protective bars, tubes, sheets, etc.
Aluminum hinged and sliding gate
Technical details
Maximal dimensions
- Swing gate up to 5.5m wide
Max. dimensions: W 5500 x H 2000 mm
- Gate up to 2.75m wide
Max. dimensions : W 2750 x H 2000 mm
Sliding gate up to 6m wide
- Max. dimensions : W 6000 x H 2000 mm
Aluminium posts
- 4 sizes available: 105/150/180/230mm
Filling sheets
Our mix gates are available with a choice of 6 sheets.
They are available:
- All Profils Systemes’s exclusive color ranges except bright.
- Pre-machining.
- Small gate size.
Accessories and fastenings
Tubular design shape on the exterior, 55 mm thick.
Motor Drive
Optional motor drive integrated in mullions. A technical and functional solution which allows many advantages:
- Invisible motor drive, directly integrated in the mullion
- Electromagnetic central locking system
- A fall regulator system
- Possibility of coating visible pieces
Assembly
In order to achieve maximum resistance, assembly is created by interlocking the sections at a 65 mm depth.
The assembly is mounted with 6.3 mm stainless-steel hex-head screws to an Aluminum mounting plate, all invisible.
The various types of fillings are installed with anti-vibration gaskets. Locks are embedded in the sections. The sections are designed to receive a permanent, invisible aluminum reinforcement, which is required when mounting various types of automatic closing systems.
