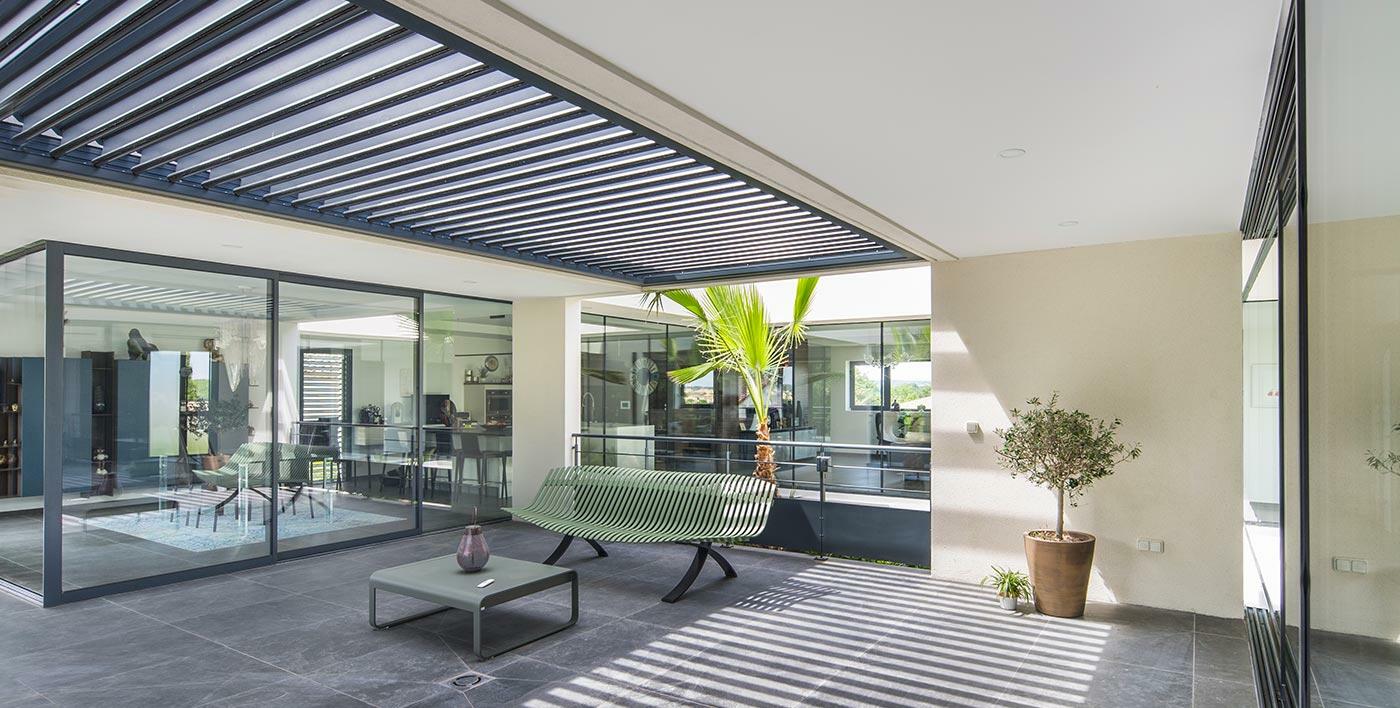

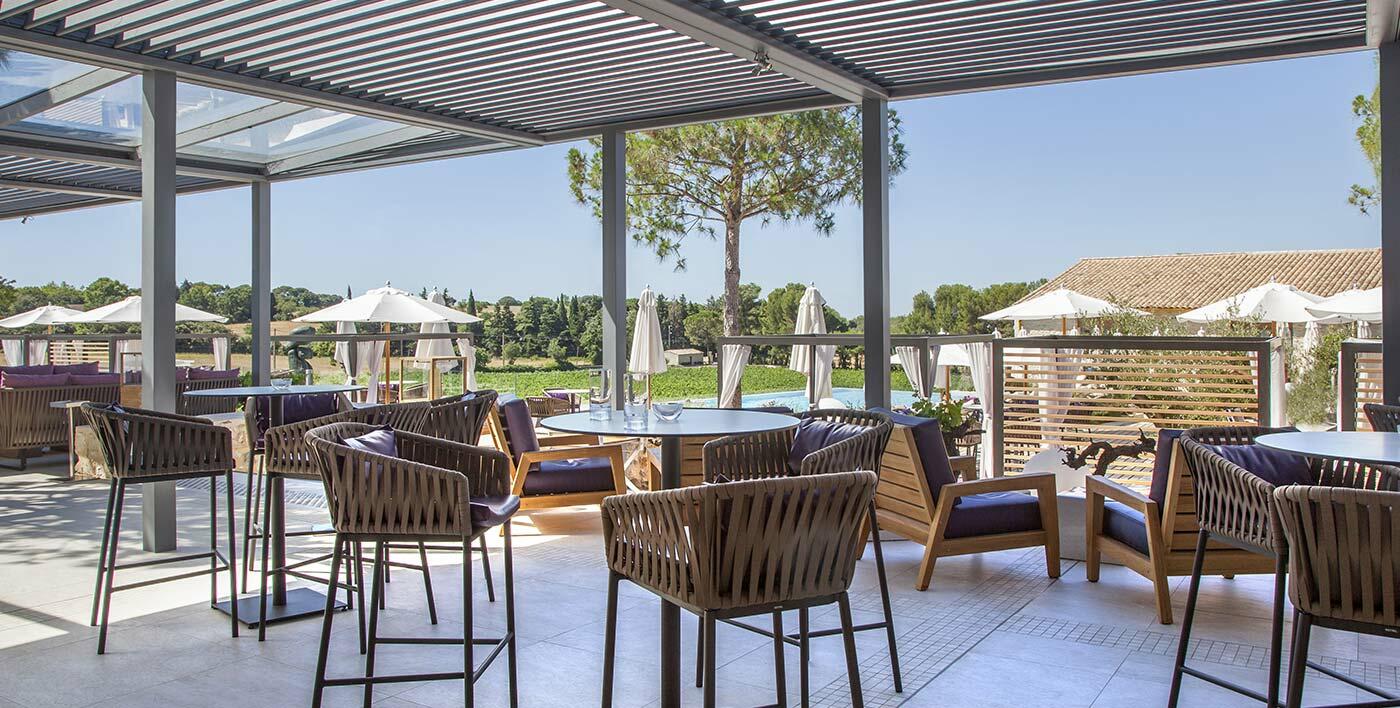

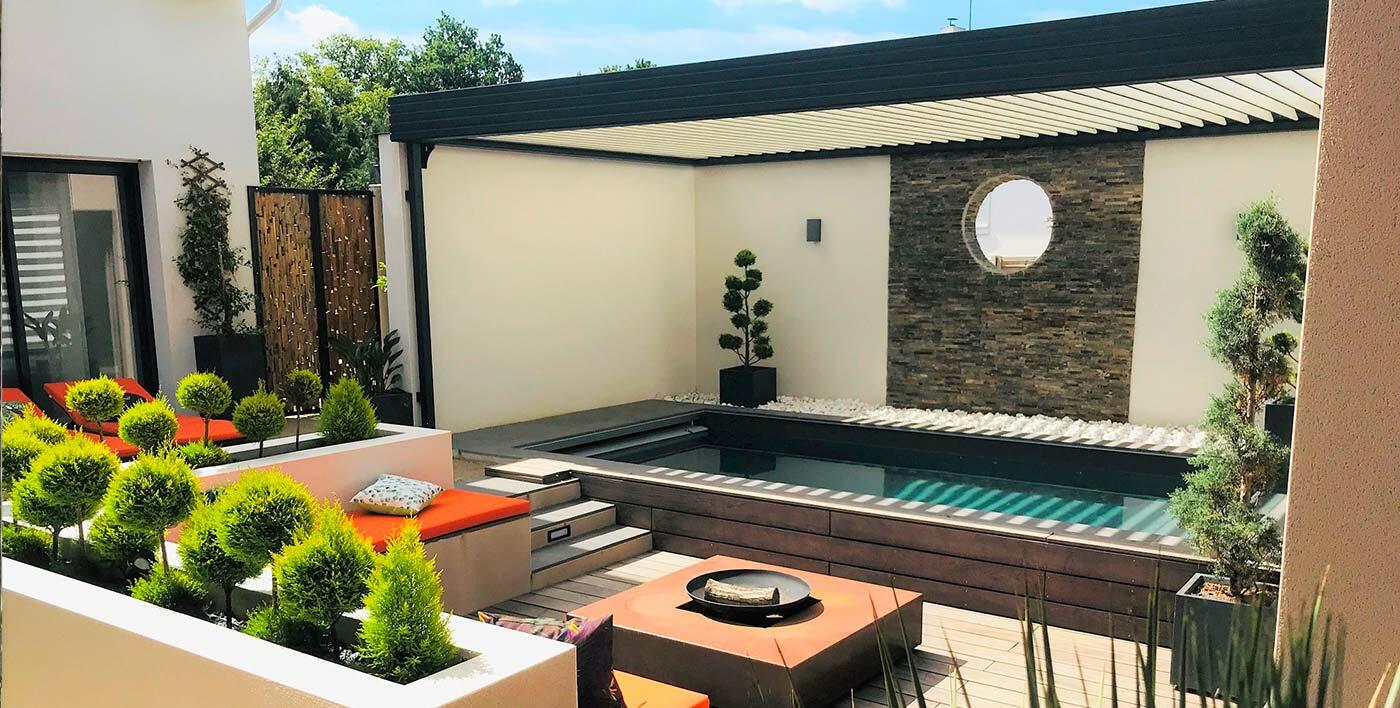

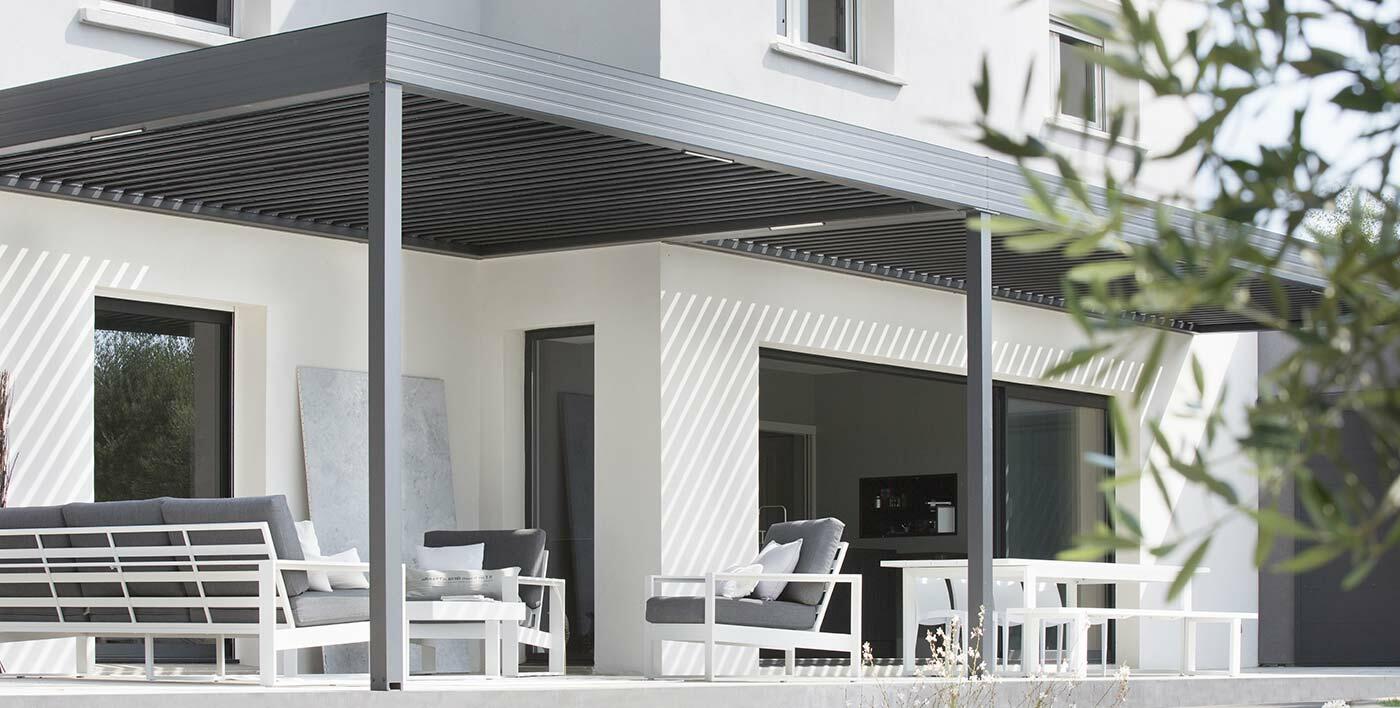

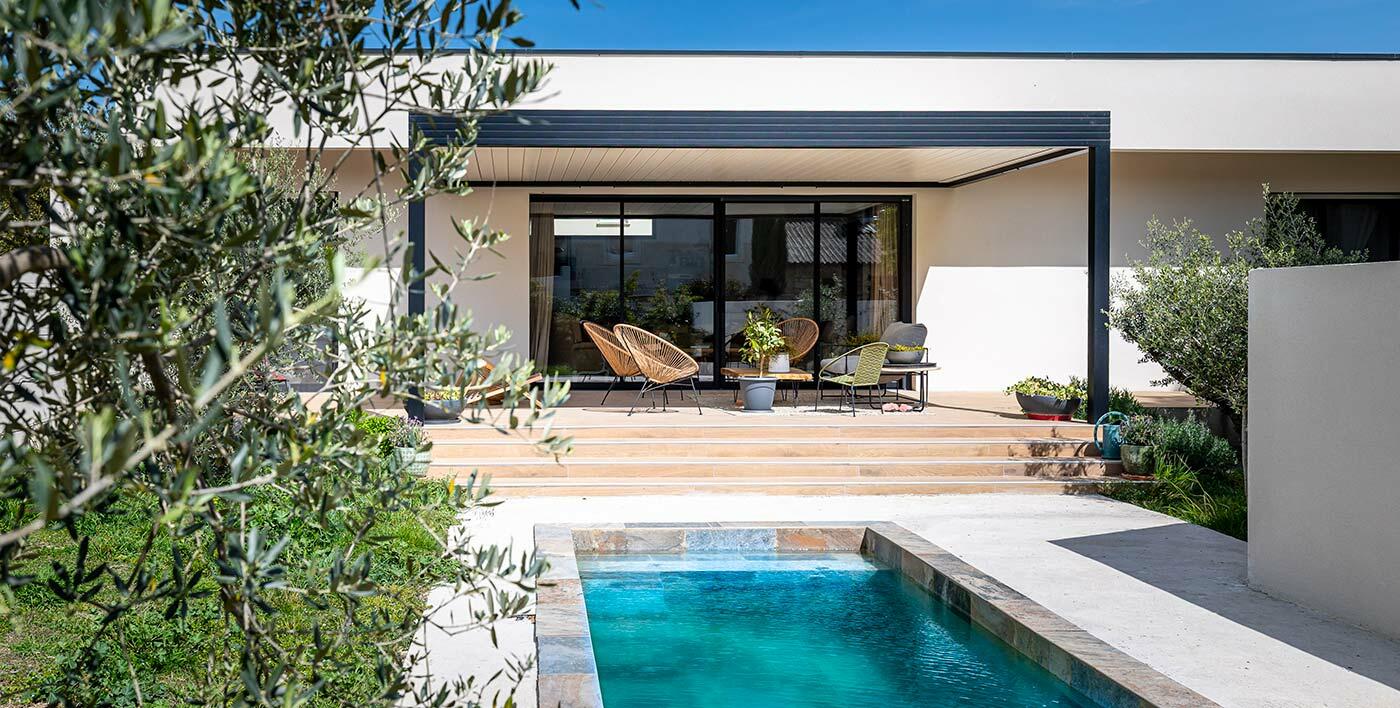

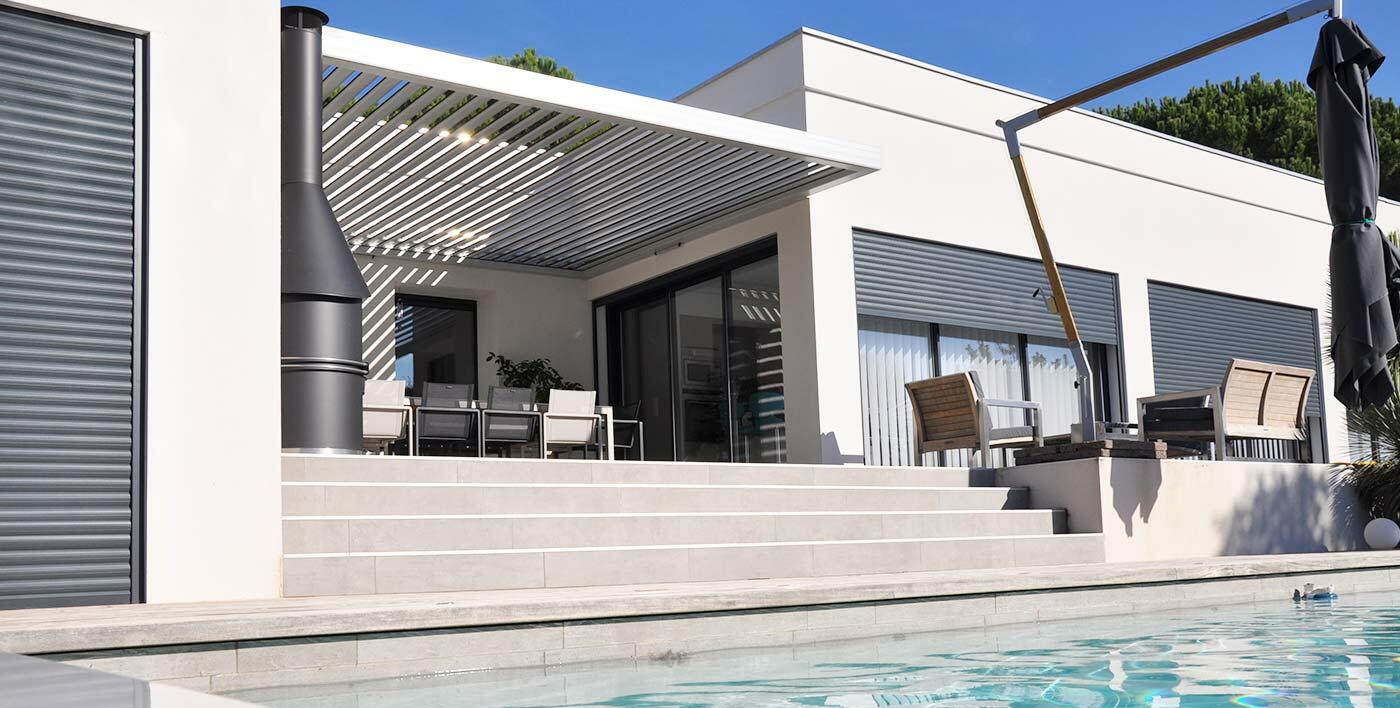

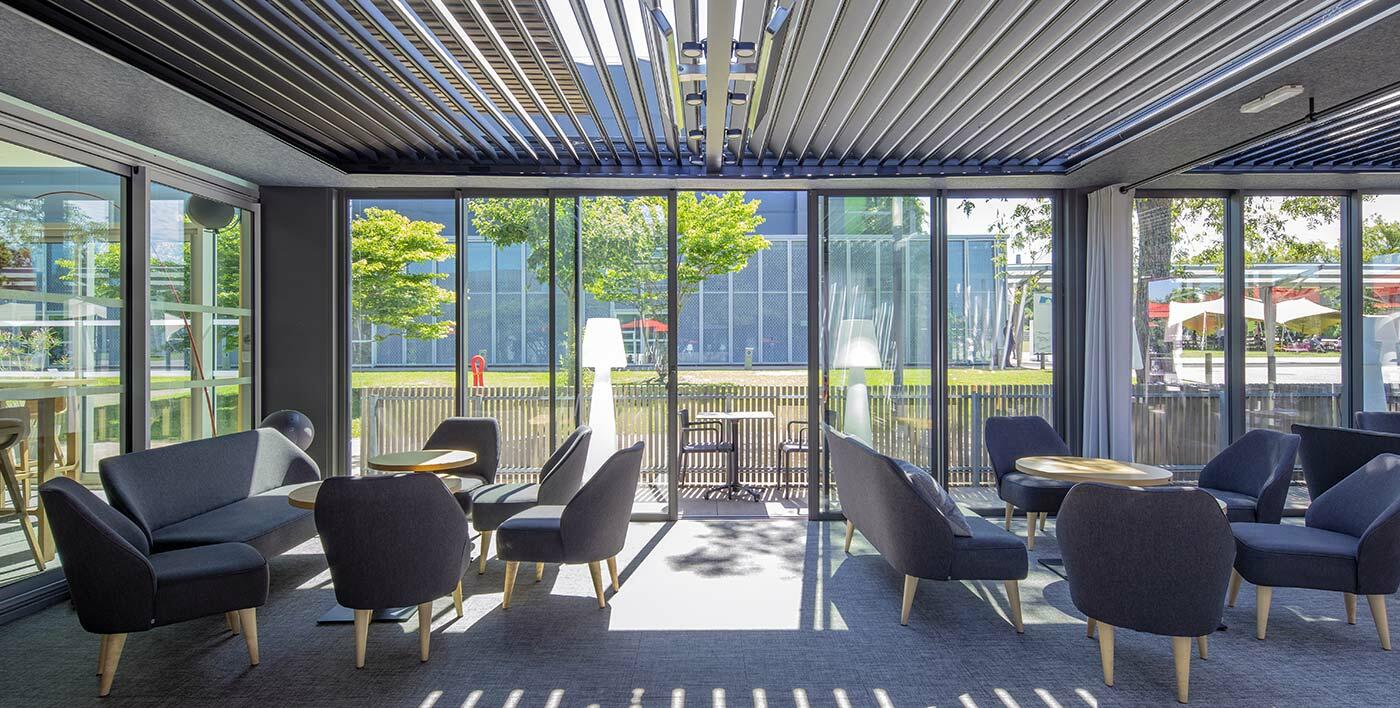

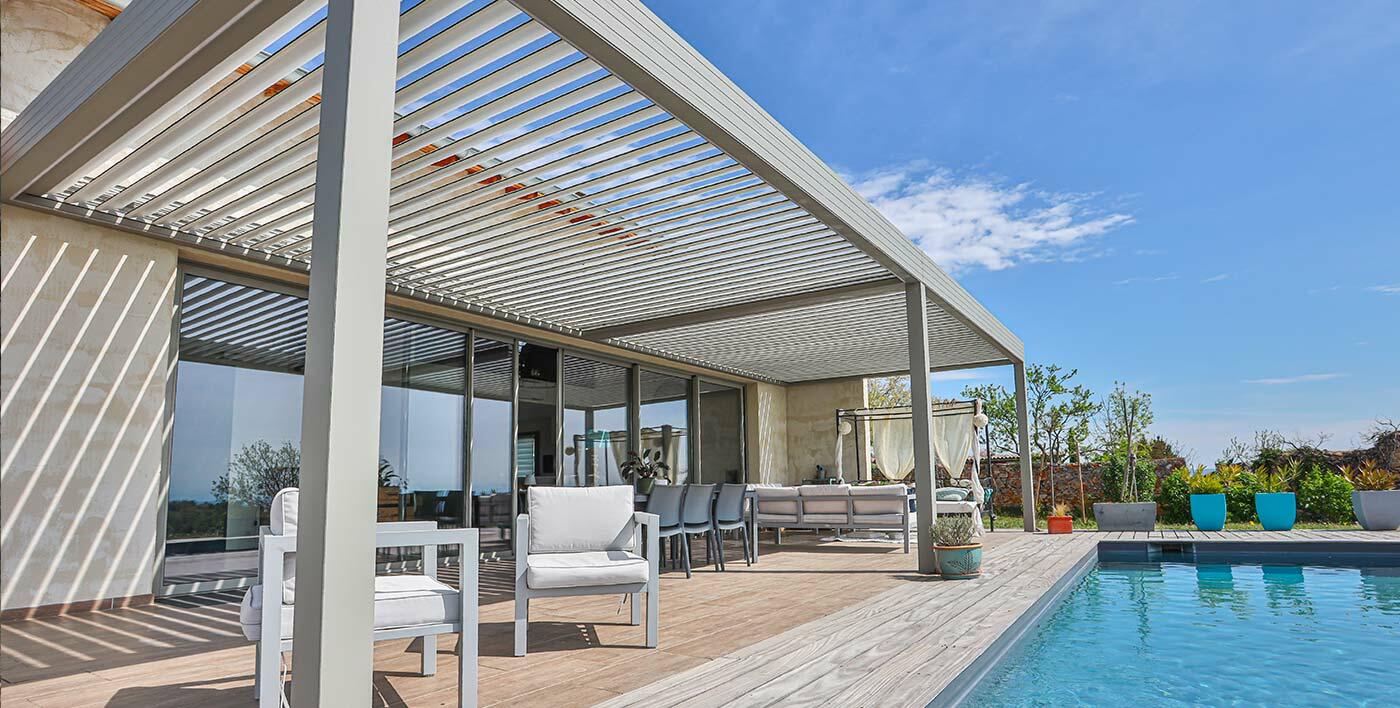

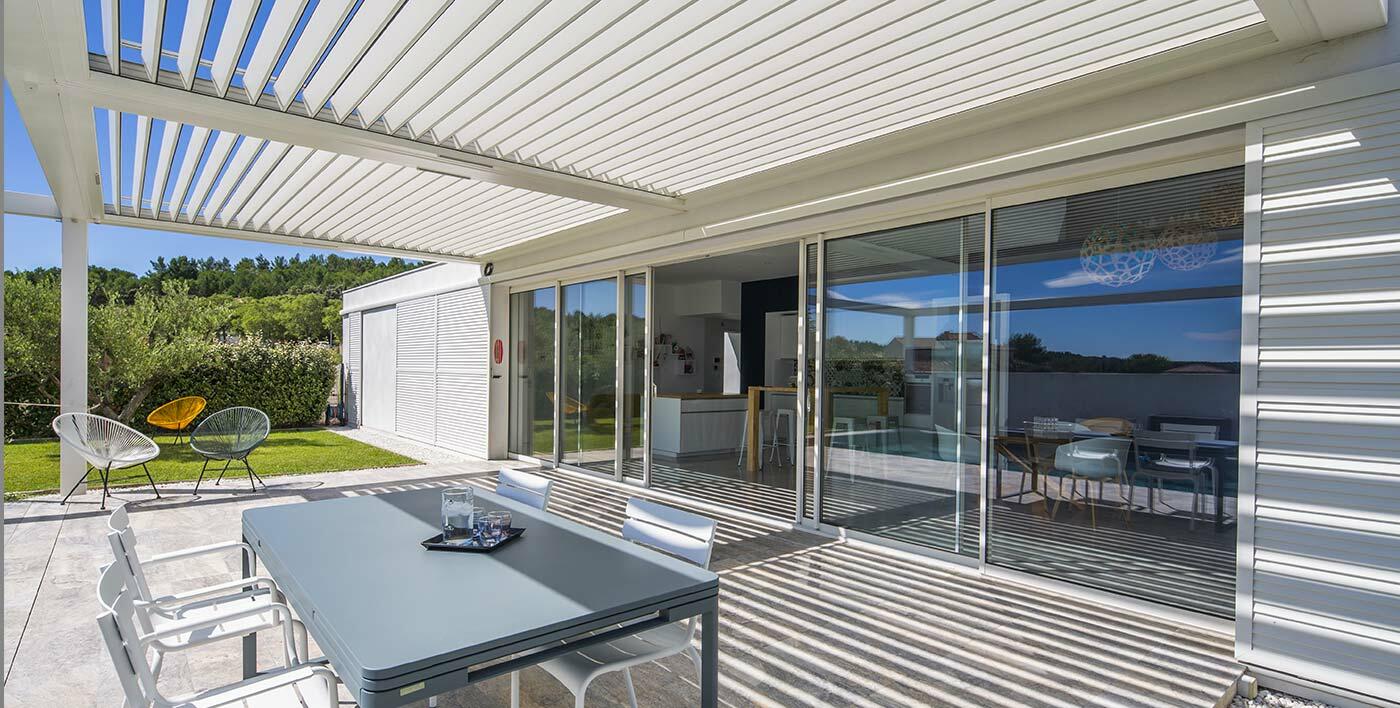

Aimed at the building improvements sector for private home collective and commercial premises, Wallis & Outdoor® Pergolas & AAS* roofs protect occupants from the harsh summer sun while capturing the sun’s light and heat in winter. Air circulation between the slats provides natural air conditioning.
Wallis & Outdoor® Pergolas & AAS* roofs fit perfectly into any style of home, whether modern, contemporary, or classic. They expand and optimize outdoor living spaces, adding comfort with dashing looks.

Pergola alu profils Systèmes

Hightlights

  • First bioclimatic patio pergola to receive French accreditation CSTB (building technical ofice) approval No.101-01-P01
  • High durability product
  • Elegant, low-key design
  • Trophy Archi Design Club 2013 award
  • Numerous configurations
  • Numerous options & customization features
  • Thermal comfort : adjustable angle slats giving relief from the harsh sun in summer and optimum solar gain in winter
  • Watertight when closed
  • Integrated drive tested for 14,000 cycles
  • Rainwater run-off with downpipe in any chosen corner
  • Smart lean finish with concealed screws
  • Ready to fit
  • Available in all Profils Systèmes’ exclusive colours
  • Colour shades guaranteed up to 25 years

View our photo book

View online

Dimensions

Large sizes

  • Up to 6945x4500mm with simple slats (2 posts)
  • Up to 5000x5000mm with hollow section slats (3 posts)
  • Up to 12000x3000mm with simple slats (3 posts)
  • Max height 3000mm
  • Trapezoid shapes

Configuration

  • Wall fixing
  • Self standing
  • Between walls

Option

  • Climate management
  • Led lighting
  • Blinds
  • Mist Cooler

Dimensions

Large sizes

  • Up to 6945x4500mm with simple slats (2 posts)
  • Up to 5000x5000mm with hollow section slats (3 posts)
  • Up to 12000x3000mm with simple slats (3 posts)
  • Max height 3000mm
  • Trapezoid shapes

Configuration

  • Wall fixing
  • Self standing
  • Between walls

Option

  • Climate management
  • Led lighting
  • Blinds
  • Mist Cooler

Technical details

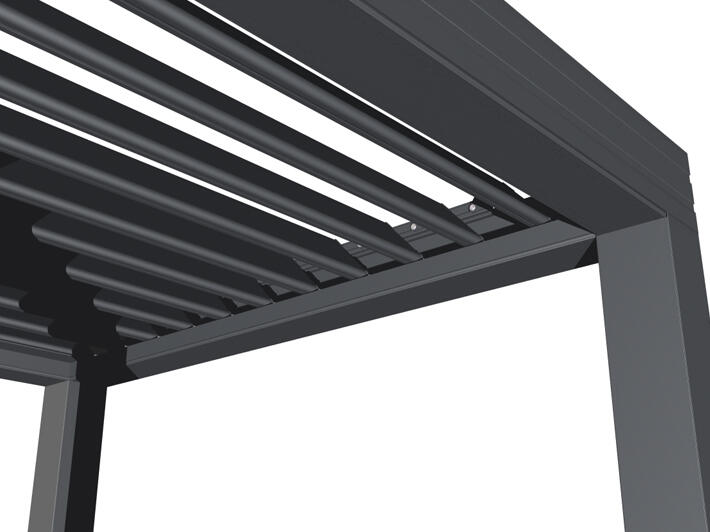

Blades

  • Extruded aluminium rotating blades, 100% recyclable 6060 alloy
  • 125° slat adjustment for modulating the sun’s rays and the ventilation fow

Posts

  • 135x135mm Aluminium posts invisible fixtures or one-piece hollow section
  • 105x105mm aluminium posts (AAS and patio roofs of lean-to)
  • Offset posts
  • 30x135mm (decor posts)

Weather Proofing

  • Totally weatherproof in closed position
  • Water run-off via edge gutter with rainwater downpipe in any chosen corner
  • Maximum snow load : 90 kg/m2
  • Floor plate or embedded fastening

Options

Climate Management

This automated solution optimizes the comfort and the safety of the adjustable sunscreen & patio roof. Several sensors are installed to open or close the roof automatically in harsh weather conditions:

  • Rain detector
  • Wind sensor for anti lift-off in strong winds
  • Temperature sensor in the central control unit to protect against snow and ice

LED Lighting

Three LED lighting systems with dimmer are available: LED rail, LED Strip, LED Spotlight

The central control unit allows two sorts of lighting to be controlled, one with a dimmer.

BLINDS

Sections and profiles are specifically adapted to integrate blinds and shutters. The blinds can be operated from a distance via the remote handset and the central climate control system.

The blind housing features the same sleek design as the patio cover :

  • Glazed or opaque doors, fixed or sliding
  • Blinds
  • ZipSCREEN solar protection

Mist Cooler

The high pressure mist is generated by pumps delivering 70 bar pressure in near-silence. The water is sprayed through  ne nozzles to form a delicate veil of mist. The mist spray has other uses too :

  • diffusing various atmospheric products (perfume, disinfectant, insecticide)
  • maintaining a virtually constant temperature and humidity
