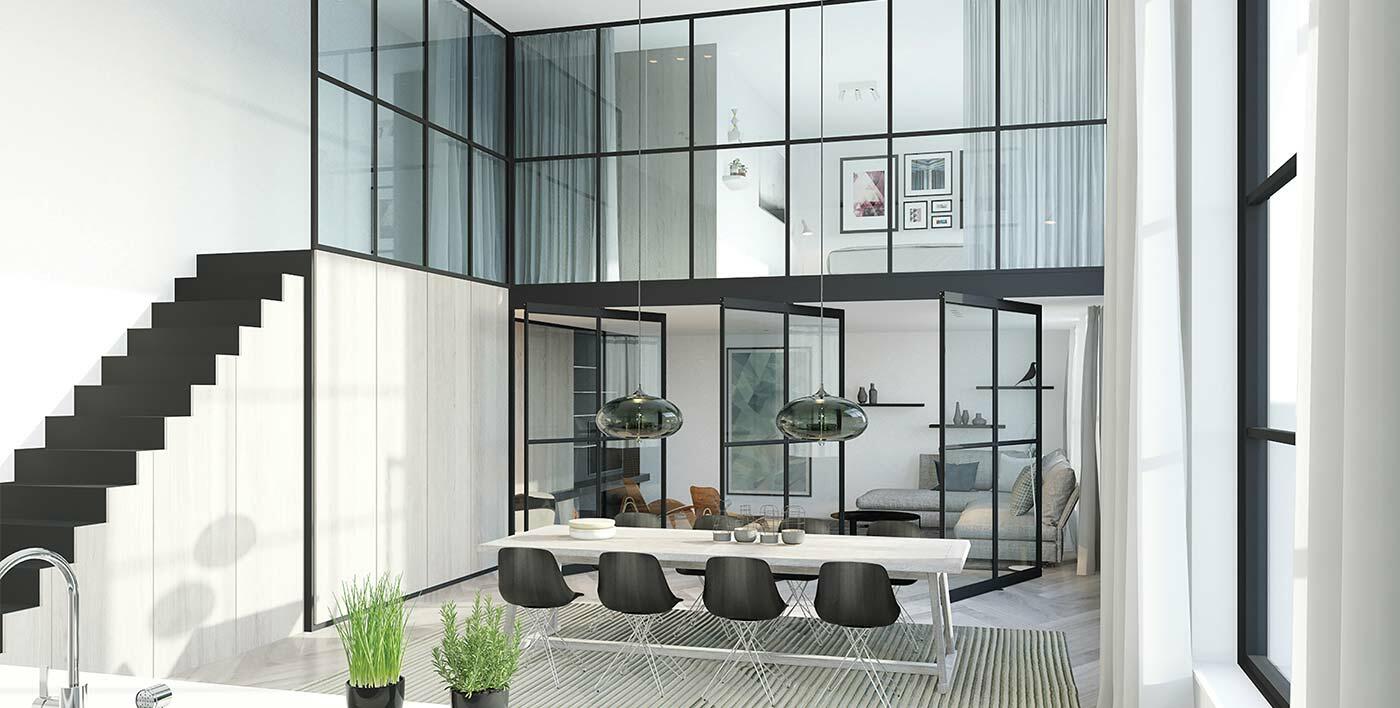

Verrière intérieure sur-mesure avec portes pivotantes

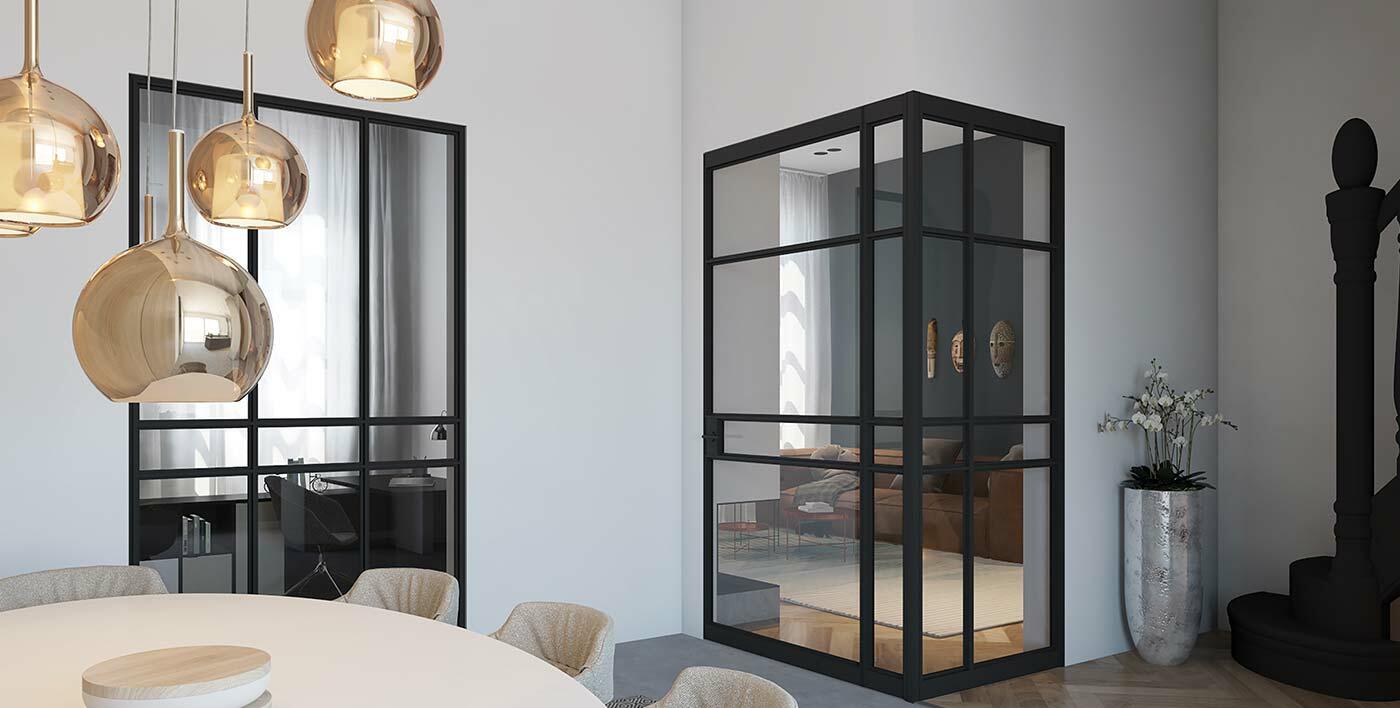

Verrière intérieure sur-mesure avec angle à 90°

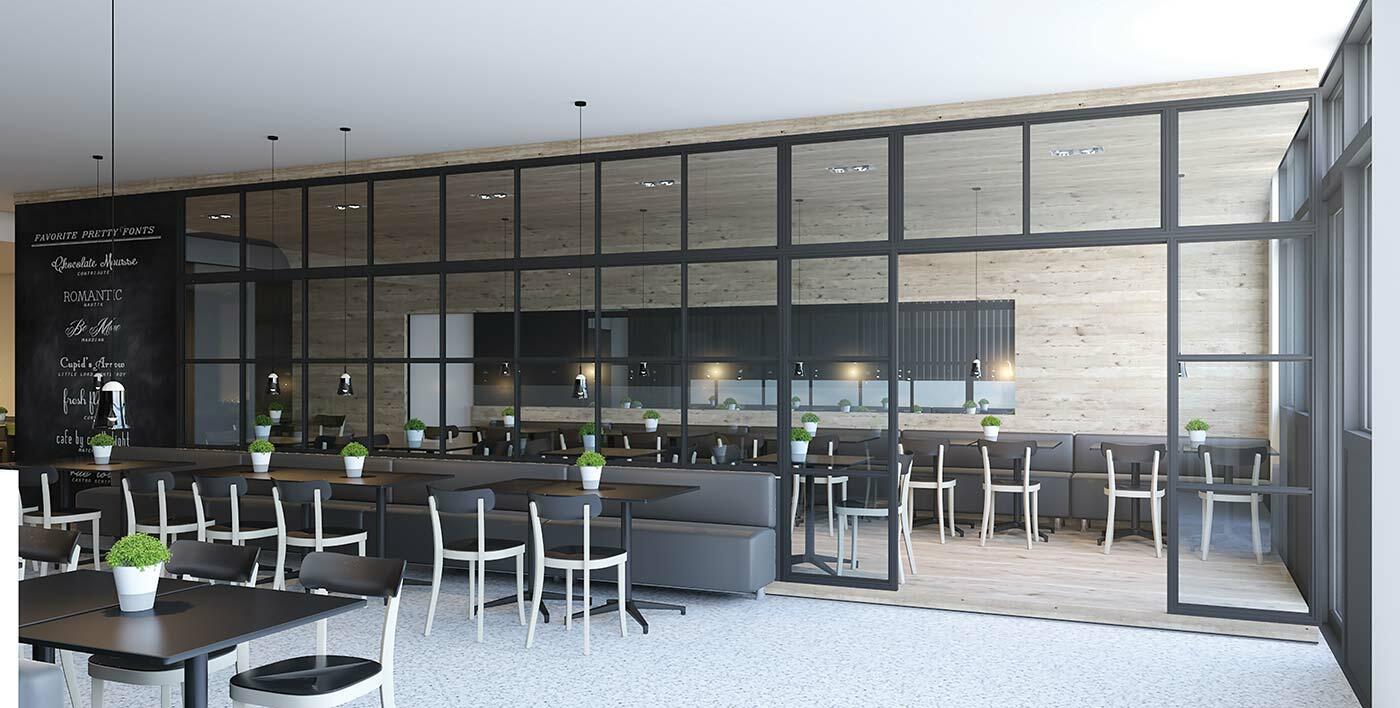

Verrière intérieure sur-mesure avec traverses intermédiaires

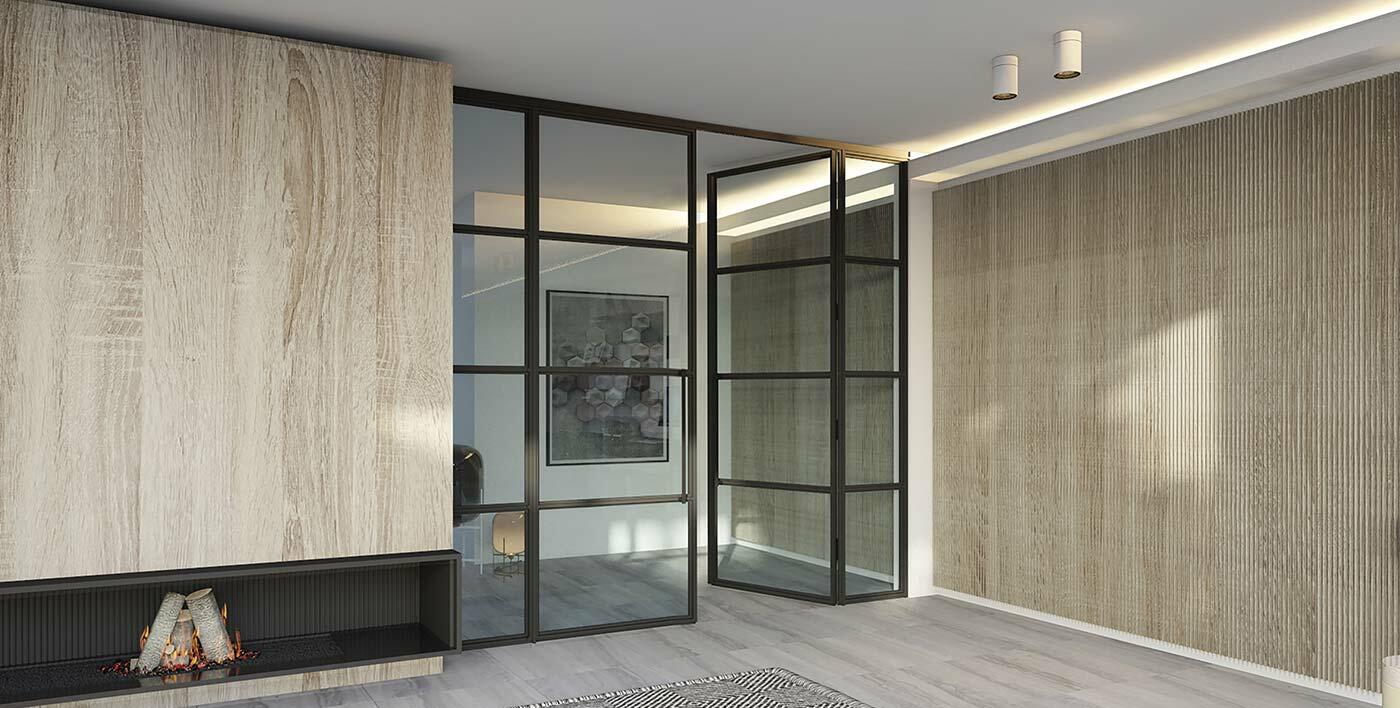

Verrière intérieure sur-mesure avec porte battante

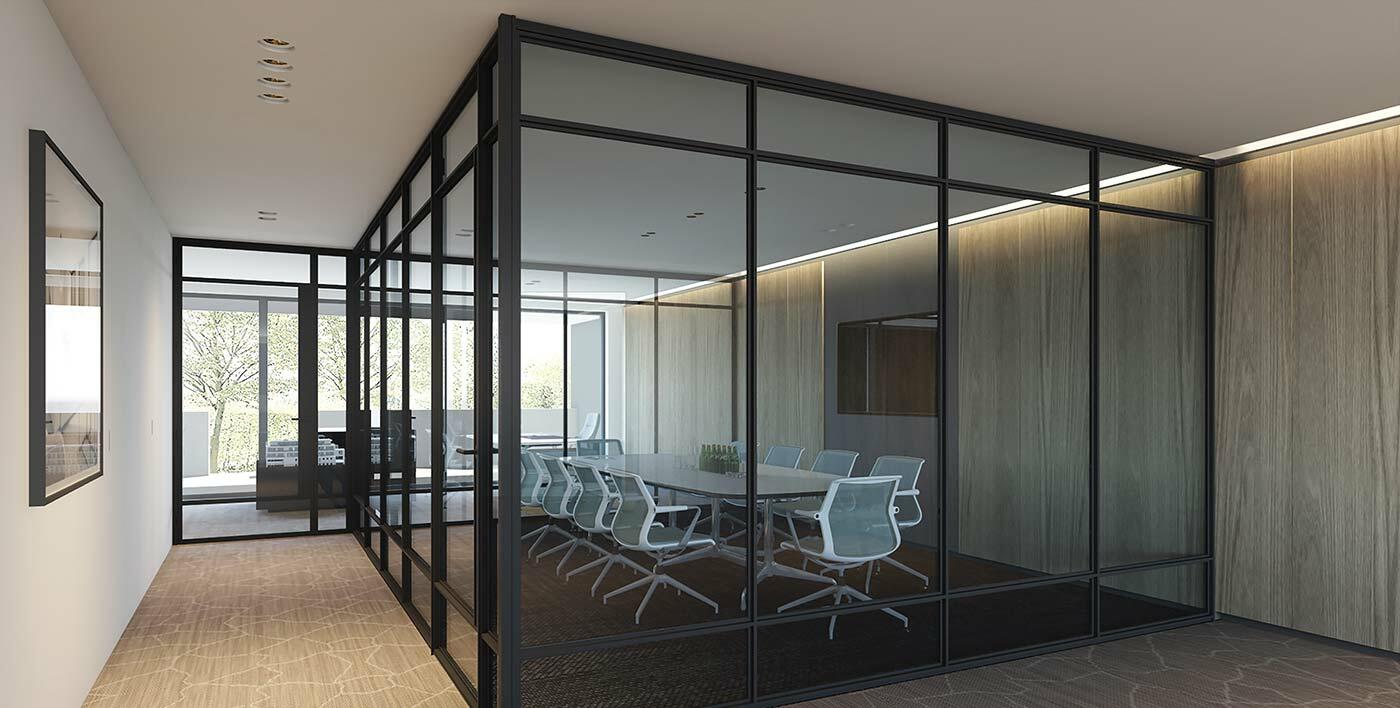

Verrière intérieure sur-mesure avec ouvrant et angle à 90°

Indoor Factory® is a complete aluminium profile system without thermal breaks, designed for the manufacture of custom interior fixed glass partitions.

A trend-setting product, the Indoor Factory® interior glass partition is a decidedly decorative solution that makes it possible to create new interior spaces by combining fixed and opening (hinged, pivoting or sliding doors) glass partitions, all in an industrial, «artist’s workshop» spirit.

Glazed interior aluminium partitions with openings

Highlights

  • Low-cost, designer solution
  • Easy to manufacture and machine
  • Available in all exclusive Profils Systèmes shades
  • Guaranteed colour fastness for up to 25 years
  • French manufacture
  • VOC Emissions : Class A



Design

  • Factory Spirit® Straight cut desig

View our photo book

View online

Configurations

  • Fixed glass partition
  • Fixed glass partition with 90° angle
  • Hinged door
  • Sliding door
  • Pivoting door

Dimensions

  • For 1100mm centres: height up to 2500mm
  • For 500mm centres: height up to 3000mm

Glazing

  • Two choices of glass  : 33.2 ou 44.2
  • Max. thickness : 8,8 mm

Configurations

  • Fixed glass partition
  • Fixed glass partition with 90° angle
  • Hinged door
  • Sliding door
  • Pivoting door

Dimensions

  • For 1100mm centres: height up to 2500mm
  • For 500mm centres: height up to 3000mm

Glazing

  • Two choices of glass  : 33.2 ou 44.2
  • Max. thickness : 8,8 mm

Technical details

Fixed glass partitions with or without 90° angle

Indoor Factory® glass partitions can be used to create elegant and stylish separations, while providing an optimal acoustic barrier and natural light. The intermediate rails assembled on the frame are freely positionable: horizontally or vertically.

Indoor Factory® interior glass partitions allow 90° angles and the integration of hinged, sliding, or pivoting doors for a total partitioning of spaces.

Swing door

Fitted with key locks to guarantee the security of the spaces, swing doors can be equipped with intermediate rails to give an industrial look or left bare for a pure and simple design.

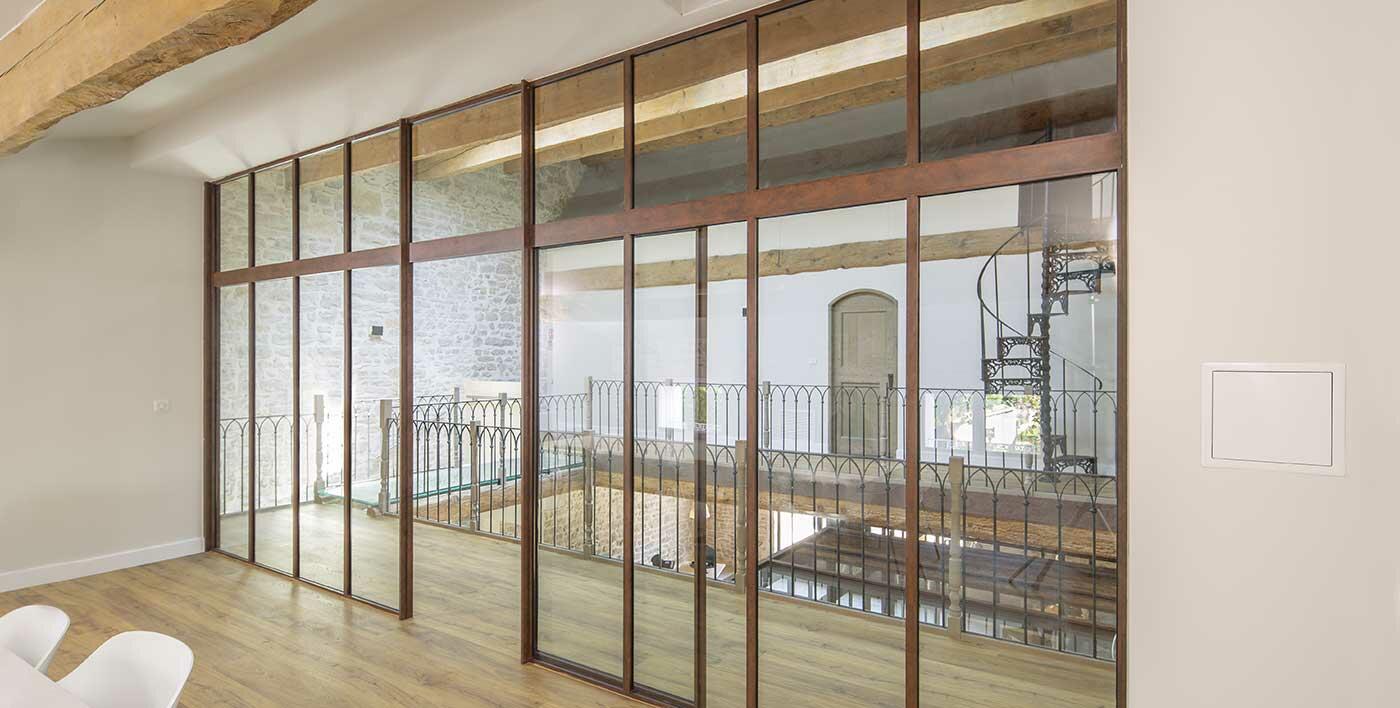

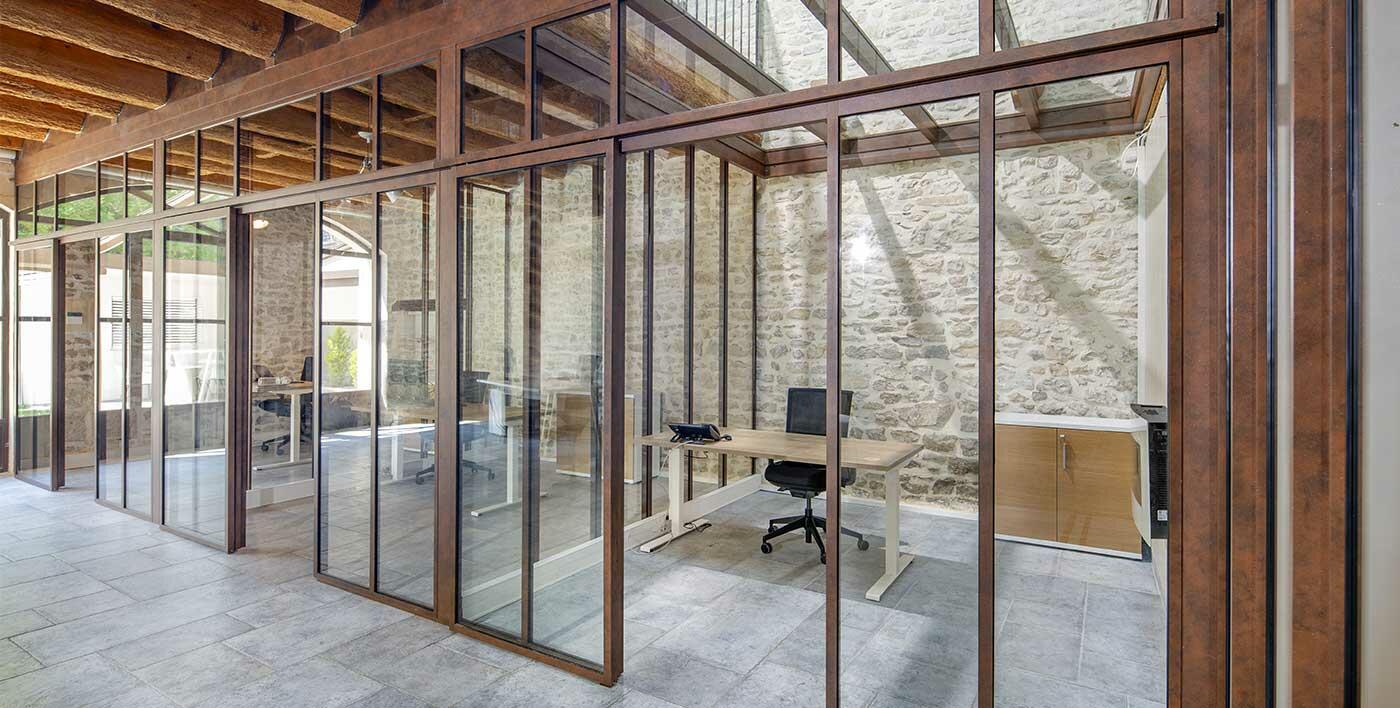

Sliding door

The sliding door system is a real space saver because it does not need to take into account an angle of rotation.

Two options of mounting rails are available in black anodized :

  • The rail with concealed wall mounting offers a simple, modern design and has a silent, low-lock opening and closing system
  • With visible fittings and runners, the second track system offers a decidedly industrial design



Pivot door

Easy to use and very aesthetically pleasing, the pivoting door offers a rotation system integrated into the interior profile which greatly facilitates its installation.

No work needs to be done on the ground! The doors can be pivoted in both directions with a holding position at 0° or 90°.

There is a choice of a floating pivot door or a pivot door with a frame to optimise acoustic comfort.

Frame

  • Tubular, W 36 x D 21mm

Intermediate rail

  • Width of visible aluminium : 36 mm
  • Possibility of positioning vertical and horizontal intermediate rails

Assembly

  • C45° frame with screw-on bracket
  • C90° frame / rail with screw-on bracket
