Indoor glass panels Wallis&Atelier®

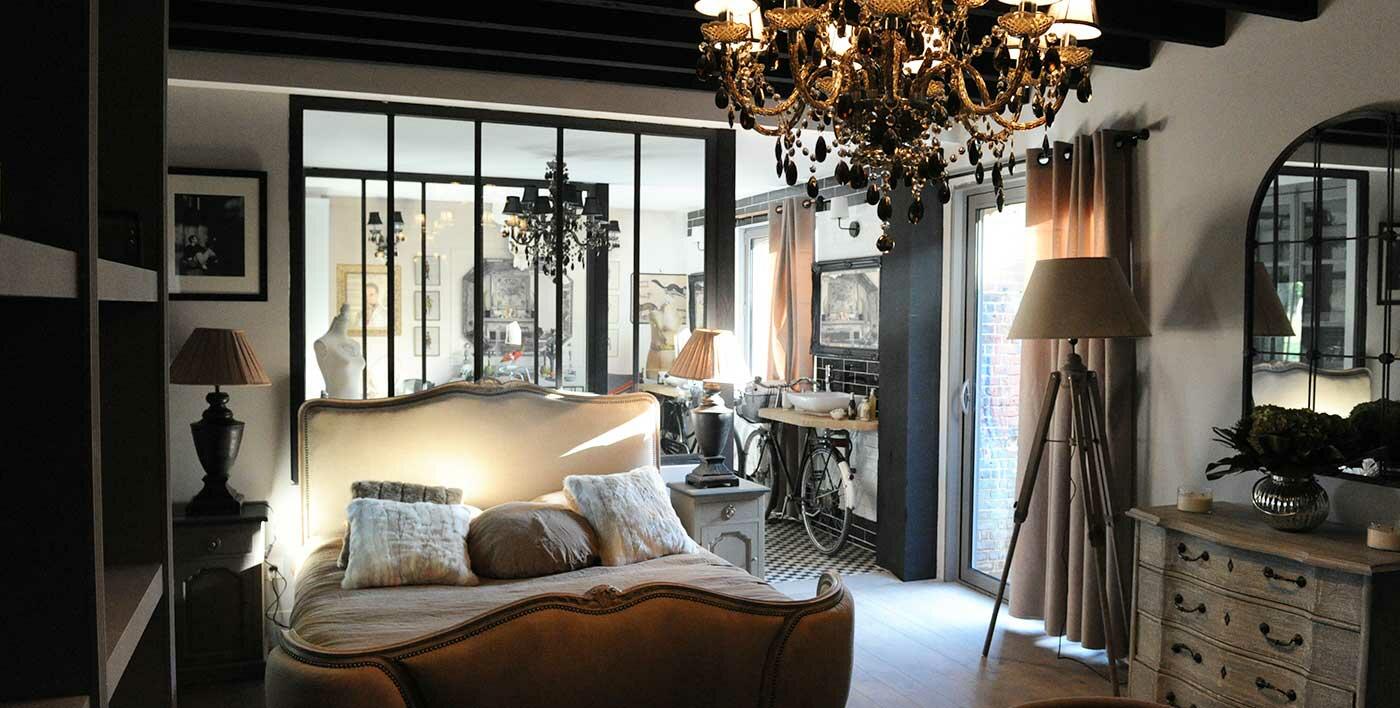

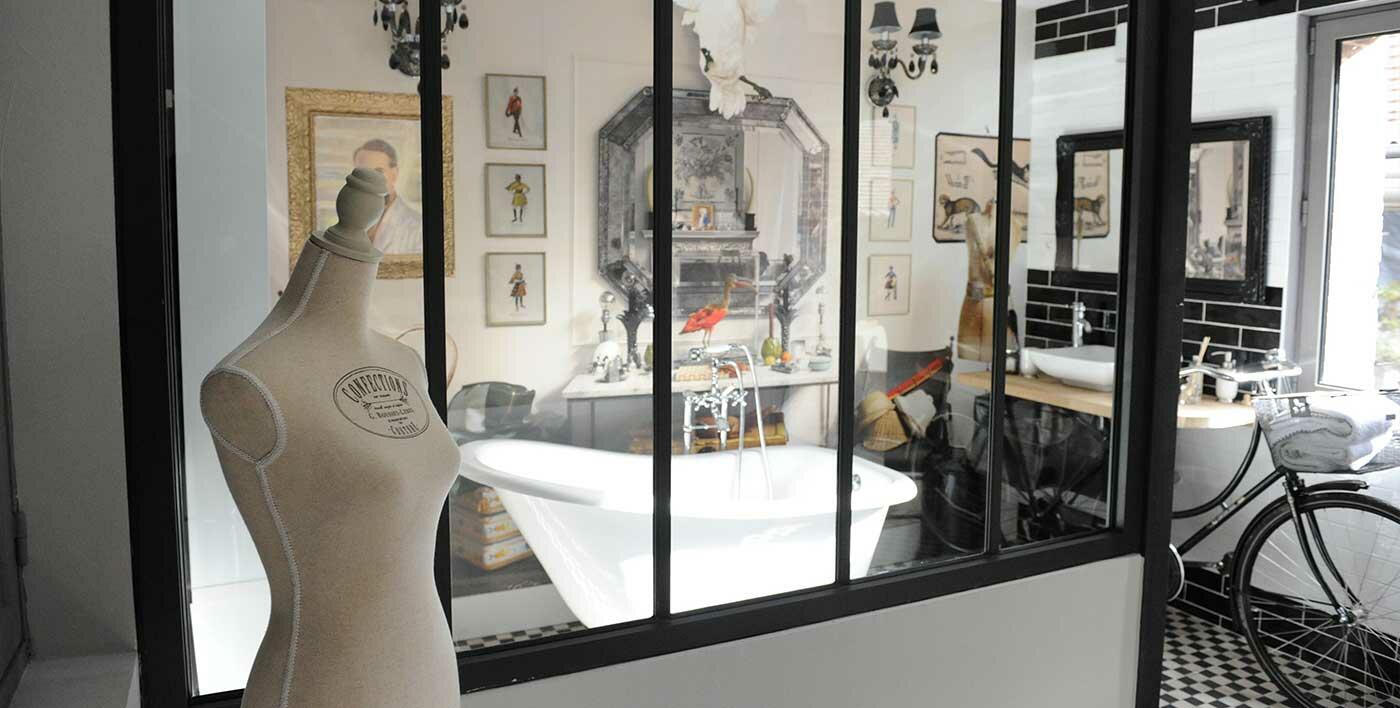

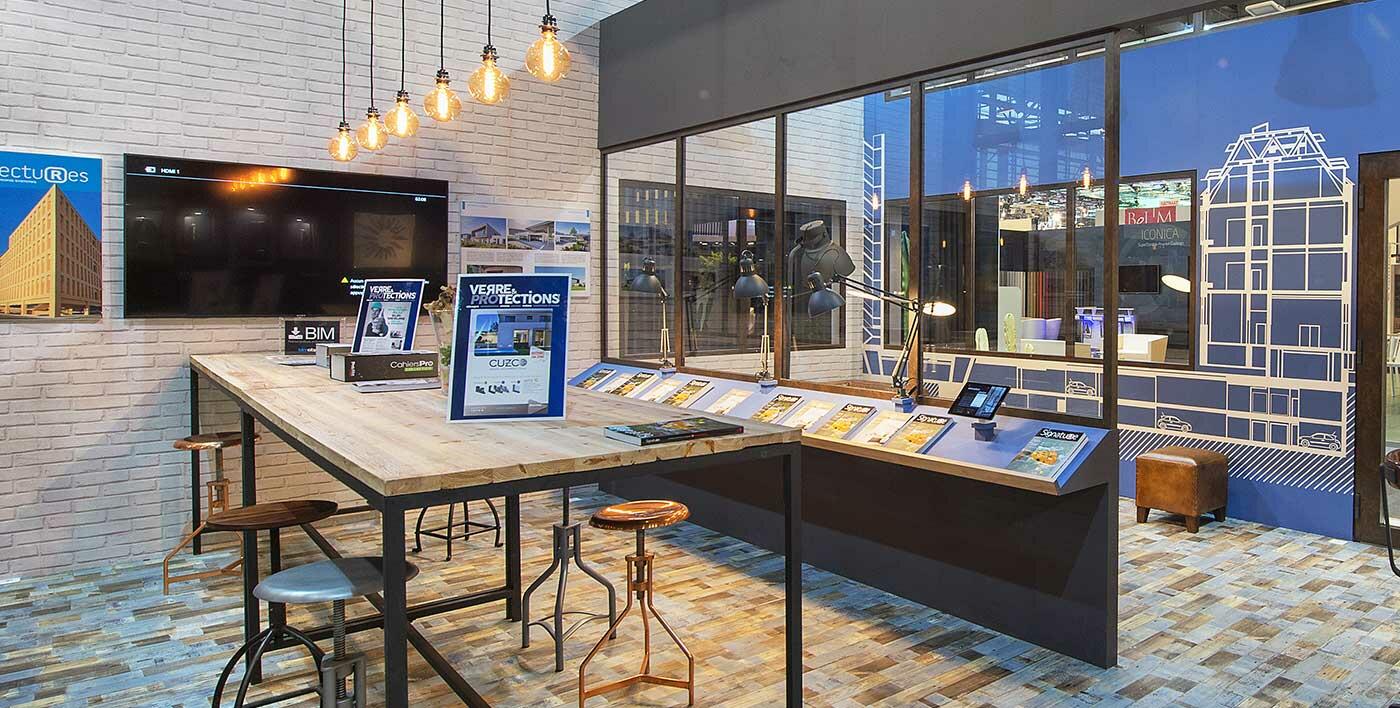

Wallis&Atelier® is a range of aluminium sections without thermal bridge break designed for the manufacture of fixed indoor glass panels with aluminium frames. An on-trend product, the Wallis&Atelier® glass panel is the right decorative solution to separate rooms in artist’s studio style, whilst ensuring maximum luminosity.
Highligts
- Economic, design solution
- Easy to manufacture and machine
- Available in all Profils Syste?mes’ exclusive colours : Terra Cigala®, Maohe?®, Eclats Me?talliques®, Profils Color®, Terre de Matie?res®
- Colour shades guaranteed up to 25 years
- Made in France
- VOC emissions : Class A+
Design
- Factory Spirit® straight cut design
Technical details
Fixed frame
- 40mm x 39mm hollow section
Intermediate crosspiece
- 40mm x 57mm hollow section
- Possibility of positioning vertical and horizontal crosspieces
Glazing
- Maximum thickness of 8.8 mm, single glazing only
Hanging
- Mitre-cut with clip + glue bracket or screw bracket
Dimensions
- Maximum height: 1600 mm
Configurations
- The Wallis&Atelier® glass panel is designed to be positioned on a traditional halfpartition (bricks or concrete) or on a ledge
094_560_fiche_Verriere_Wallis_Atelier_FR_GB
