Cuzco® aluminium sliding bay with high energy performance
CUZCO® Series 712 is the latest range of High Energy Performance aluminium sliding doors created by Profils Systèmes. With a 70mm fixed frame, it ts beautifully into the existing CUZCO® range of doors and windows.
High energy performance
Highlights
- Meets French regulations RE 2020
- Options : slim cross-bars and reduced junction
- Patented thermal shield
- FACTORY SPIRIT® Design
- Glazing up to 32mm
- Max. load / leaf : 250 kg
- Solar gain optimised
- Excellent light transmission
- Disabled access sill
- Available in all Profils Systèmes’ exclusive colours
- Colour shades guaranteed up to 25 years
Thermal performances
- Uw=1.4 Wm2K | Sw=0.53 | Tlw=0.66 Warmedge | Ug=1.1 frame double glazed French window 2 leaves W2350 x H2180 mm
- Uw=1.3 Wm2K | Sw=0.43 | Tlw=0.58 Warmedge | Ug=1.0 frame double glazed French window 2 leaves W2350 x H2180 mm
Complete range
- Extra-high frame: up to 3m
- Pocket door frame : 1, 2, 3, 4 or 6 leaves straight cut
- Sliding corner angles : 2, 4 or 6 leaves
Also worth a look:
- Metis® fixed & sliding system : up to 4 leaves (2 mobiles + 2 fixed)
- Sliding ultra-thin system : up to 4 leaves, 2 rails
- Pocket door frame revisited for veranda : up to 4 leaves, 2 rails
Complete range
- Extra-high frame: up to 3m
- Pocket door frame : 1, 2, 3, 4 or 6 leaves straight cut
- Sliding corner angles : 2, 4 or 6 leaves
Also worth a look:
- Metis® fixed & sliding system : up to 4 leaves (2 mobiles + 2 fixed)
- Sliding ultra-thin system : up to 4 leaves, 2 rails
- Pocket door frame revisited for veranda : up to 4 leaves, 2 rails

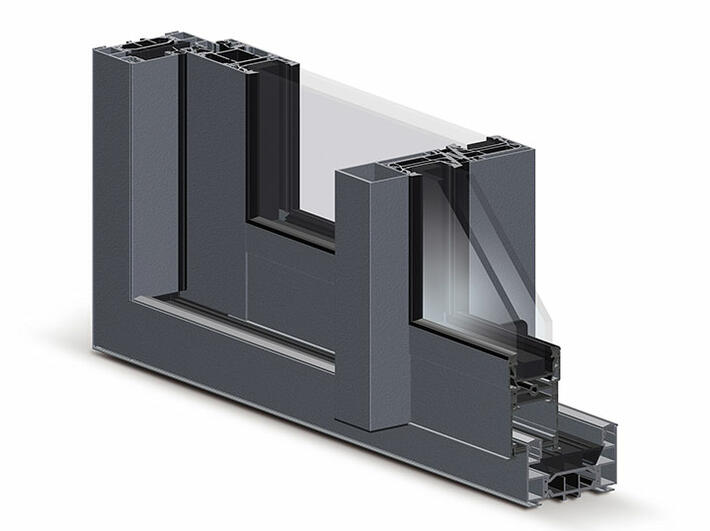

Technical details
Slim cross-bars
- An only 22mm slim cross-bars (compared with 37mm or 34.4mm as standard) is now available as an option on 2 to 8 leaves, reducing the mass of aluminum !
Reduced JAYA® junction
A specific reduced junction pro le available on sliding 2- leaf frames for:
- 1 rail (pocket frame),
- 4 leaves on 2 rails (traditional or pocket frame),
- 6 leaves on 3 rails (traditional).
The visible aluminium sightline is reduced by 40% slimmed from 142.3 mm to 87.8 mm
Fixed frame
- 70 mm module with 42mm polyamide strips
Opening section
- Opening section with 28mm to 32mm polyamide strips
C45° or C90° Mounting
- 45° cut sashes using clamp-on angle brackets + gluing
- Sashes and casements in 90° section assembled with stainless steel screws in alveovis
Weather Tightness
- Via brush or TPE gaskets between the different profiles
- Via co-extruded gaskets between interlock profiles
Closing
- 1 to 5 closing points with or without key locking
Sliding wheels
- Single or double wheels, adjustable or not
