Vertical Blind Wallis&ZIP® for Pergola

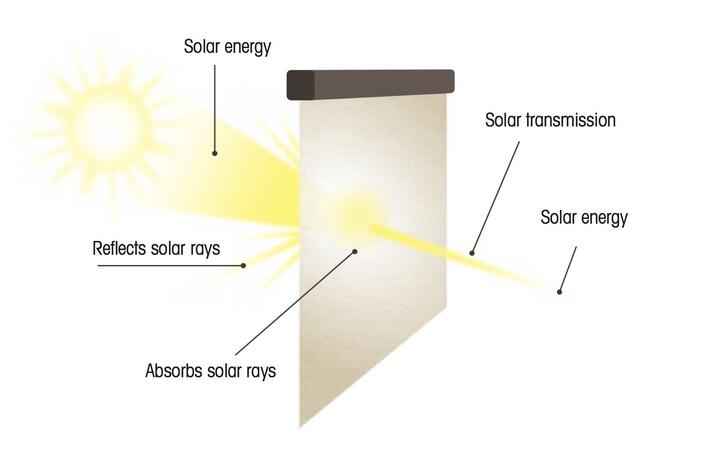

Wallis&ZIP® solar protection is a multifunctional vertical blind. The vertical Wallis &ZIP® blind allows users to manage solar and light gain, provides privacy from passers-by from wind and bad weather. Fitted on each side of the Wallis&Outdoor® Pergola, it meets many needs, looks attractive and adds to the comfort of users.
Vertical blind for aluminium pergola
Hightlights
- Factory Spirit® Design
- It combines perfectly with the Wallis &Outdoor® pergola
- Built-in SOMFY motorization
- Same remote control as Wallis &Outdoor® pergola
- Very strong resistance
- Fast and simple fitting
- Excellent finish : concealed fastenings
- Large choice of fabric
- Available in all Profils Systèmes’ exclusive colours : Terra Cigala®, Maohé®, Eclats Métalliques®, Profils Color®, Terre de Matières®
- 5 years warranty on Wallis &ZIP®
- Anti UV treatment: Colour shades guaranteed up to 10 years
Resistance
- Very strong wind resistance: 92km/h up to 18m2
- Weather-resistant
- Fire-resistant: graded M1
- Tear-resistant: certified ISO 1421
- Warp-resistant: no wave effect
Dimensions
2 casing sizes:
- Casing 110x115mm for blinds up to 4m wide or 3m high (the slot can be reserved for installing LED lighting strips)
- Casing 135x155mm for blinds over 4m wide or 3m high
- Up to L6000 x H3000mm with a 155mm casing
- Made to measure
Design & Confort
- It combines perfectly with the Wallis&Outdoor® pergola (on a 135mm post). No fixings are visible on the sliding parts or the casing
- The front bar disappears entirely within the casing in the open position
- Angular casing
- There is an inspection cover for cleaning the blind fabric and for any work on the axis or motor
- The slider sightline has been reduced by 34mm
- A profile to hide the sliding section is available
Resistance
- Very strong wind resistance: 92km/h up to 18m2
- Weather-resistant
- Fire-resistant: graded M1
- Tear-resistant: certified ISO 1421
- Warp-resistant: no wave effect
Dimensions
2 casing sizes:
- Casing 110x115mm for blinds up to 4m wide or 3m high (the slot can be reserved for installing LED lighting strips)
- Casing 135x155mm for blinds over 4m wide or 3m high
- Up to L6000 x H3000mm with a 155mm casing
- Made to measure
Design & Confort
- It combines perfectly with the Wallis&Outdoor® pergola (on a 135mm post). No fixings are visible on the sliding parts or the casing
- The front bar disappears entirely within the casing in the open position
- Angular casing
- There is an inspection cover for cleaning the blind fabric and for any work on the axis or motor
- The slider sightline has been reduced by 34mm
- A profile to hide the sliding section is available
Technical details
Motorisation
- Built-in motorisation via a 230 V / 50 Hz SOMFY tubular motor
- The pergola and the vertical blinds are controlled by the same remote control and RTS wind captor
Fitting
- Fast and simple fitting: Fitting in 2 stages thanks to the slider without glazing bead.
Fabric
- 3 fabric types are available, offering a large choice of textures and colours for final users
- Large fabric dimensions : up to 18m2
- Transversal welds may be present according to the type and size of fabric chosen
- Easy maintenance : clean with soapy water
